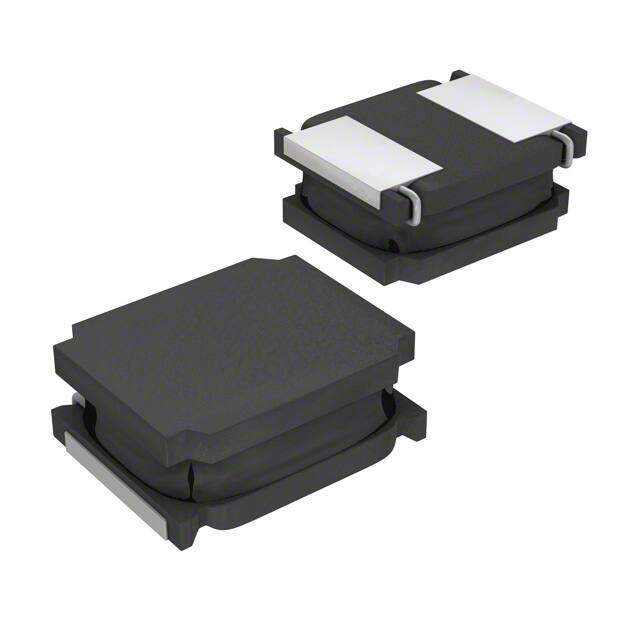

74404024180
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-LQS Nonstandard 0.098Lx0.079W 2.50mmx2.00mm 18muH
PDF
/
Buying Options
Total Price: USD $0.85
Unit Price: USD $0.851689
≥1 USD $0.851689
≥10 USD $0.80348
≥100 USD $0.758002
≥500 USD $0.715095
≥1000 USD $0.67462
Inventory: 1160
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 2.0066mm
Length 2.4892mm
Height Seated (Max) 0.047 1.20mm
Height 1.2mm
Technical
RMS Current (Irms) 460mA
Inductance Tolerance 20%
Current - Saturation 650mA
Inductance Frequency - Test 1MHz
Frequency - Self Resonant 26MHz
Max DC Current 460mA
DC Resistance (DCR) 830mOhm
Test Frequency 1MHz
Inductance 18μH
Current Rating 460mA
Shielding Shielded
Current Rating (Amps) 460mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Series WE-LQS
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Weight 32.006612mg
Supplier Device Package 2520
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
