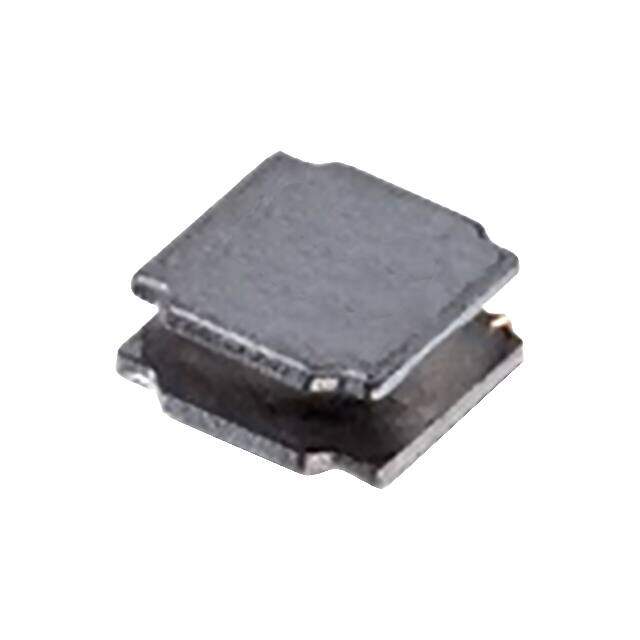

74404020047
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 4.7UH 730MA 399 MOHM
PDF
/
Buying Options
Total Price: USD $0.47
Unit Price: USD $0.465652
≥1 USD $0.465652
≥10 USD $0.439289
≥100 USD $0.414423
≥500 USD $0.390968
≥1000 USD $0.368844
Inventory: 1171
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.039 1.00mm
Technical
Inductance Tolerance 20%
Current - Saturation 800mA
Inductance Frequency - Test 1MHz
Frequency - Self Resonant 70MHz
DC Resistance (DCR) 399mOhm
Inductance 4.7μH
Shielding Shielded
Current Rating (Amps) 730mA
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.079Lx0.063W 2.00mmx1.60mm
Series WE-LQS
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Supplier Device Package SMD
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
Alternative Model
