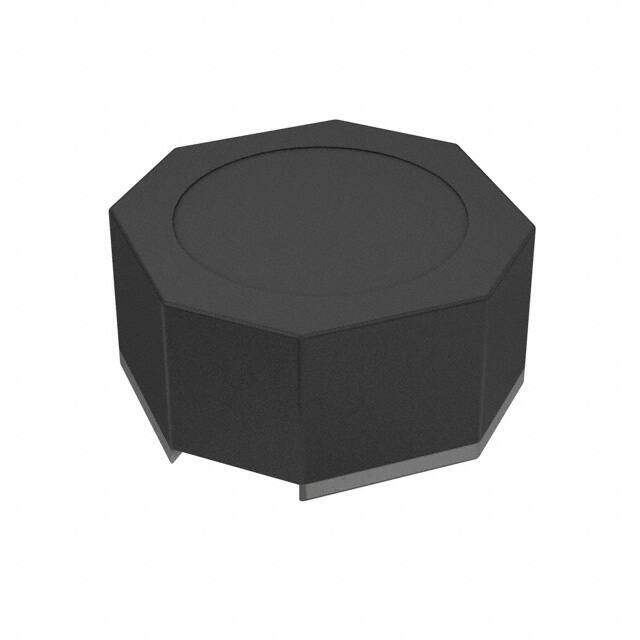

744029003 image
Favorite
744029003 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-TPC Nonstandard 0.110Lx0.110W 2.80mmx2.80mm 3.3muH
PDF
/
Buying Options
Total Price: USD $0.48
Unit Price: USD $0.48355
≥1 USD $0.48355
≥10 USD $0.3971
≥100 USD $0.38475
≥500 USD $0.3724
≥1000 USD $0.36005
Inventory: 1169
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 2.8mm
Length 2.8mm
Height Seated (Max) 0.059 1.50mm
Height 1.35mm

Technical

RMS Current (Irms) 1.25A
Inductance Tolerance 30%
Current - Saturation 950mA
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 70MHz
Max DC Current 1.55A
DC Resistance (DCR) 130mOhm Max
Test Frequency 100kHz
Inductance 3.3μH
Current Rating 1.25A
Depth 2.8mm
Shielding Shielded
Current Rating (Amps) 1.25A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 110mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.110Lx0.110W 2.80mmx2.80mm
Series WE-TPC
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Weight 32.006612mg
Supplier Device Package 2828
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 14 Weeks
