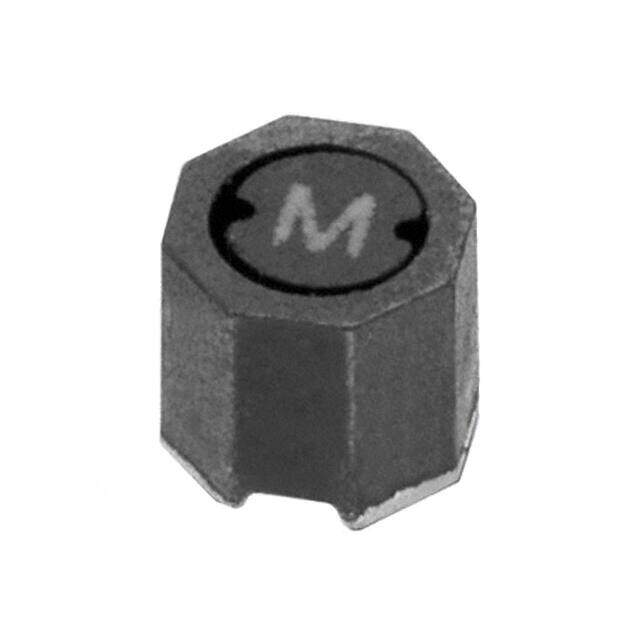

74402500072
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-TPC Nonstandard 0.110Lx0.110W 2.80mmx2.80mm 720nH
PDF
/
Buying Options
Total Price: USD $1.48
Unit Price: USD $1.47794
≥1 USD $1.47794
≥10 USD $1.394285
≥100 USD $1.315363
≥500 USD $1.240905
≥1000 USD $1.170667
Inventory: 1158
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 2.794mm
Length 2.8mm
Height Seated (Max) 0.118 3.00mm
Height 2.8mm
Technical
RMS Current (Irms) 3A
Inductance Tolerance 25%
Current - Saturation 4A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 210MHz
Max DC Current 3A
DC Resistance (DCR) 27.5mOhm Max
Test Frequency 100kHz
Inductance 720nH
Current Rating 3A
Depth 2.8mm
Shielding Shielded
Current Rating (Amps) 3A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±25%
Size / Dimension 0.110Lx0.110W 2.80mmx2.80mm
Series WE-TPC
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Supplier Device Package 2828
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
