701014330
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description

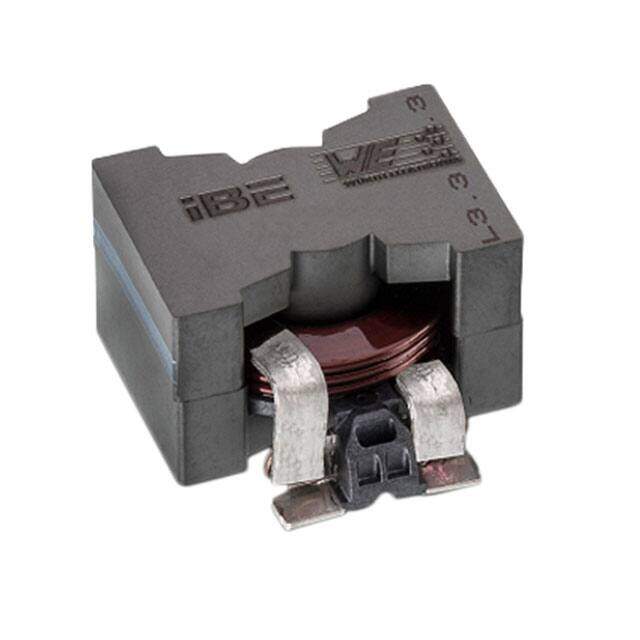

FIXED IND 3.3UH 35A 1.1 MOHM SMD
PDF
/
Inventory: 3734
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~150°C
Packaging Tape & Reel (TR)
Series WE-FLAT-I
Size / Dimension 1.083Lx1.083W 27.50mmx27.50mm
Tolerance ±15%
Part Status Active
Type Wirewound
Current Rating (Amps) 35A
Shielding Shielded
Inductance 3.3μH
DC Resistance (DCR) 1.1mOhm
Inductance Frequency - Test 100kHz
Current - Saturation 40A
Dimensions
Height Seated (Max) 0.669 17.00mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
