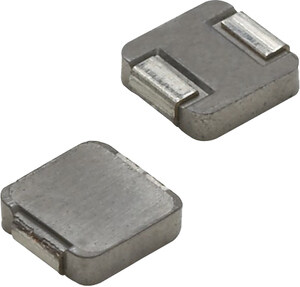

IHLP1616ABEBR10M11 image
Favorite
IHLP1616ABEBR10M11 image
Favorite

IHLP1616ABEBR10M11

Vishay
RoHS
/
Package 1616
Category Inductors, Coils, Chokes / Fixed Inductors
Description GENERAL PURPOSE INDUCTOR RoHS Compliant Lead Free WRAPAROUND (Type) Inductor -55C 1MHz 5.5mOhm 100nH
PDF
/
Inventory: 9174
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
Radiation Hardening No

Dimensions

Width 4.06mm
Length 4.45mm
Height 1.2mm

Technical

Inductance-Nom (L) 0.1 μH
Inductance Tolerance 20%
DC Resistance (DCR) - Parallel 5.5mOhm
Case/Size Code 1816
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application HIGH CURRENT INDUCTOR
Frequency - Self Resonant 1MHz
Inductance 100 nH
Operating Temperature (Min) -55°C
Construction Shielded
Depth 4.31mm
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
ECCN Code EAR99
Number of Terminations 2
Pbfree Code yes
JESD-609 Code e3
Tolerance 20%
Packaging Bulk

Physical

Core Material IRON
Shape/Size Description RECTANGULAR PACKAGE
Number of Pins 2
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 1616
