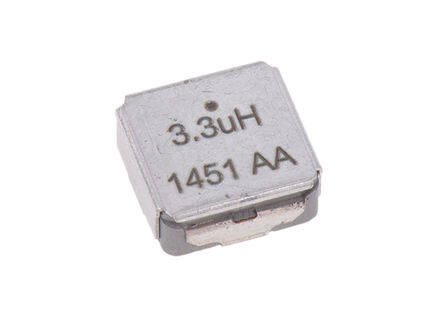

IHLE4040DCER3R3M5A image
Favorite
IHLE4040DCER3R3M5A image
Favorite

IHLE4040DCER3R3M5A

Vishay
RoHS
/
Package 4040
Category Inductors, Coils, Chokes / Fixed Inductors
Description VISHAY IHLE4040DCER3R3M5A Surface Mount Power Inductor, IHLE-4040DC-5A Series, 3.3 H, 11 A, 12 A, Shielded, 0.01181 ohm
PDF
/
Inventory: 7477
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
REACH SVHC Unknown

Dimensions

Length 10.8mm
Height 4.2mm

Technical

RMS Current (Irms) 11A
Inductance Tolerance 20%
DC Resistance (DCR) - Parallel 11.81mOhm
Current - Saturation 12A
Inductor Type GENERAL PURPOSE INDUCTOR
Frequency - Self Resonant 1MHz
Inductance 3.3 μH
Depth 10.8mm
Shielding Shielded
HTS Code 8504.50.80.00
Min Operating Temperature -55°C
Max Operating Temperature 155°C
ECCN Code EAR99
Published 2015
Packaging Cut Tape

Physical

Material - Core Composite, Metal
Package / Case 4040
Mount Surface Mount
