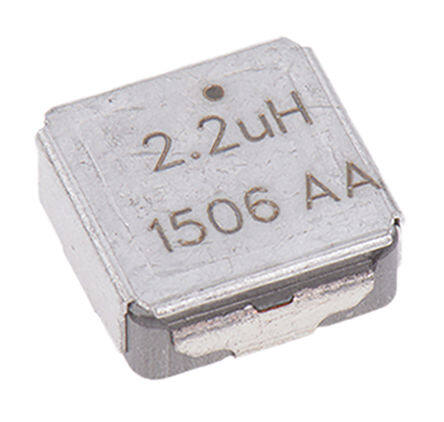

IHLE4040DCER2R2M5A
RoHS
/
Package 4040
Category Inductors, Coils, Chokes / Fixed Inductors
Description
VISHAY IHLE4040DCER2R2M5A Surface Mount Power Inductor, IHLE-4040DC-5A Series, 2.2 H, 15 A, 12 A, Shielded, 0.00876 ohm
PDF
/
Inventory: 8372
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case 4040
Material - Core Composite, Metal
Technical
Packaging Cut Tape
Published 2015
ECCN Code EAR99
Max Operating Temperature 155°C
Min Operating Temperature -55°C
HTS Code 8504.50.80.00
Shielding Shielded
Depth 10.8mm
Inductance 2.2 μH
Frequency - Self Resonant 1MHz
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 12A
DC Resistance (DCR) - Parallel 8.76mOhm
Inductance Tolerance 20%
RMS Current (Irms) 15A
Dimensions
Height 4.2mm
Length 10.8mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
