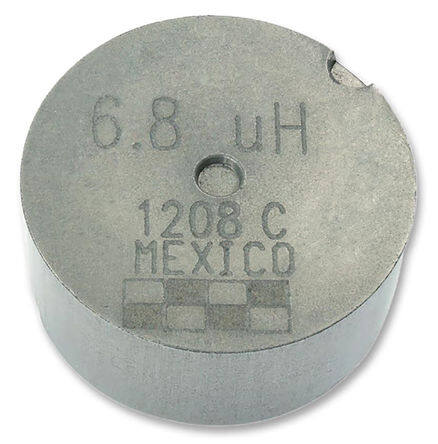

IHTH0750IZEB6R8M5A image
Favorite
IHTH0750IZEB6R8M5A image
Favorite

IHTH0750IZEB6R8M5A

Vishay Dale
RoHS
RoHS RoHS compliant
Package Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description IHTH-0750IZ-5A Radial Vertical Cylinder 0.755Dia 19.18mm 6.8muH
PDF
/
Inventory: 6577
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Length 8.738mm
Height Seated (Max) 0.354 8.99mm
Diameter 19.177mm

Technical

RMS Current (Irms) 24.5A
Inductance Tolerance 20%
Current - Saturation 22A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 9.5MHz
Max DC Current 22A
DC Resistance (DCR) 4.18mOhm Max
Test Frequency 100kHz
Inductance 6.8μH
Lead Diameter 1.422 mm
Lead Pitch 13.259mm
Shielding Shielded
Current Rating (Amps) 24.5A
Min Operating Temperature -55°C
Max Operating Temperature 155°C
Termination Radial
Part Status Active
Tolerance ±20%
Size / Dimension 0.755Dia 19.18mm
Series IHTH-0750IZ-5A
Published 2014
Packaging Bulk
Operating Temperature -55°C~155°C

Physical

Material - Core Metal Composite
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole

Supply Chain

Factory Lead Time 10 Weeks
