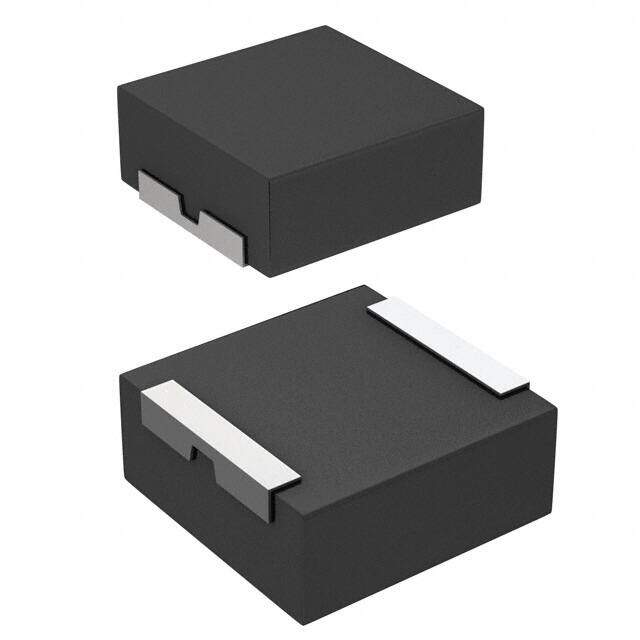

IHLP6767DZER100M11
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
IHLP-6767DZ-11 Nonstandard 0.675Lx0.675W 17.15mmx17.15mm 10muH
PDF
/
Buying Options
Total Price: USD $2.99
Unit Price: USD $2.992
≥1 USD $2.992
≥10 USD $2.50448
≥100 USD $2.28624
≥500 USD $1.95976
≥1000 USD $1.796432
Inventory: 643
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Number of Pins 2
Shape/Size Description RECTANGULAR PACKAGE
Core Material Ferrite
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2011
Series IHLP-6767DZ-11
Size / Dimension 0.675Lx0.675W 17.15mmx17.15mm
Tolerance ±20%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Molded
Resistance 17.2Ohm
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
HTS Code 8504.50.80.00
Packing Method TR, 13 Inch
Shielding YES
Number of Functions 1
Depth 17.15mm
Construction RECTANGULAR PACKAGE
Current Rating 12A
Inductance 10μH
Test Frequency 100kHz
DC Resistance (DCR) 18.92mOhm Max
Max DC Current 12A
Inductor Application HIGH CURRENT INDUCTOR
Terminal Placement DUAL ENDED
Current - Saturation 8A
Inductance Tolerance 20%
RMS Current (Irms) 12A
Self Resonant Frequency 750kHz
Dimensions
Height 4mm
Height Seated (Max) 0.157 4.00mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
