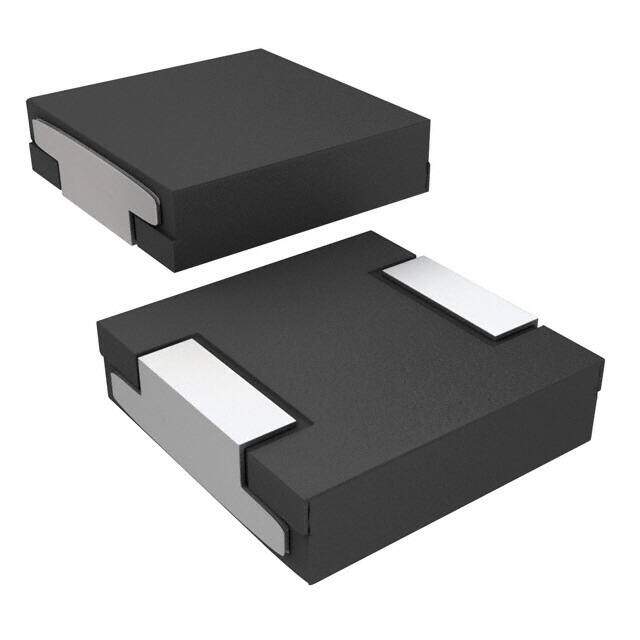

IHLP5050EZERR68M01
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
IHLP-5050EZ-01 Nonstandard 0.520Lx0.508W 13.20mmx12.90mm 680nH
PDF
/
Buying Options
Total Price: USD $1.88
Unit Price: USD $1.8832
≥1 USD $1.8832
≥10 USD $1.6016
≥100 USD $1.476288
≥500 USD $1.31912
≥1000 USD $1.099208
Inventory: 700
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Height Seated (Max) 0.197 5.00mm
Height 5mm
Technical
Self Resonant Frequency 5MHz
RMS Current (Irms) 34A
Inductance Tolerance 20%
Terminal Placement DUAL ENDED
Inductor Application HIGH CURRENT INDUCTOR
Max DC Current 54A
DC Resistance (DCR) 1.7mOhm Max
Test Frequency 100kHz
Inductance 680nH
Military Standard Not
Current Rating 34A
Depth 12.9mm
Number of Functions 1
Shielding YES
Packing Method TR, 13 Inch
HTS Code 8504.50.80.00
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Resistance 1.5mOhm
Type Molded
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.520Lx0.508W 13.20mmx12.90mm
Series IHLP-5050EZ-01
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Core Material Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Number of Pins 5050
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Alternative Model
