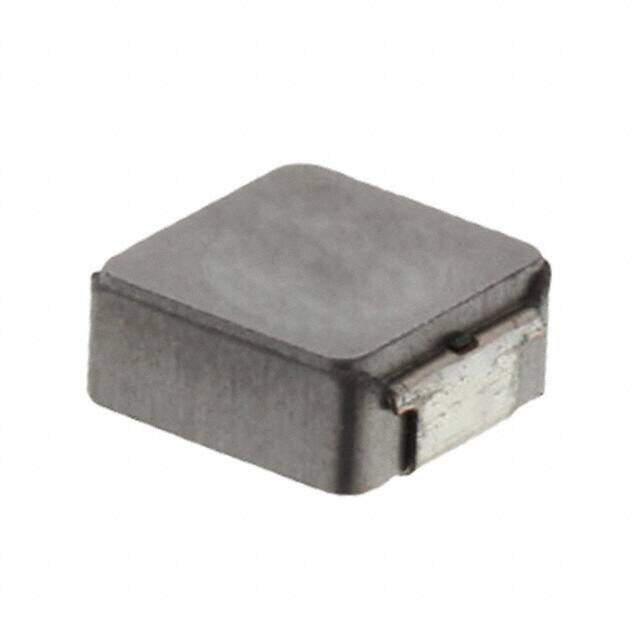

IHLP2525CZER4R7M8A
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
IHLP-2525CZ-8A Nonstandard 0.270Lx0.255W 6.86mmx6.47mm 4.7muH
PDF
/
Buying Options
Total Price: USD $1.15
Unit Price: USD $1.1528
≥1 USD $1.1528
≥10 USD $0.97504
≥100 USD $0.886336
≥500 USD $0.833008
≥1000 USD $0.69124
≥3000 USD $0.63807
Inventory: 1126
Minimum: 1
-
+
Technical Details
Technical
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Molded
Resistance 35.9mOhm
Max Operating Temperature 180°C
Min Operating Temperature -55°C
Current Rating (Amps) 5.6A
Shielding Shielded
Depth 6.47mm
Current Rating 5.6A
Case Code (Metric) 6363
Case Code (Imperial) 2525
Inductance 4.7μH
Test Frequency 100kHz
DC Resistance (DCR) 38.4mOhm Max
Max DC Current 5.6A
Frequency - Self Resonant 25.5MHz
Inductance Frequency - Test 100kHz
Current - Saturation 5.6A
Inductance Tolerance 20%
RMS Current (Irms) 5.6A
Part Status Active
Tolerance ±20%
Size / Dimension 0.270Lx0.255W 6.86mmx6.47mm
Series IHLP-2525CZ-8A
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -55°C~180°C
Dimensions
Height 3mm
Height Seated (Max) 0.118 3.00mm
Length 6.858mm
Width 6.477mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 22 Weeks
Alternative Model
