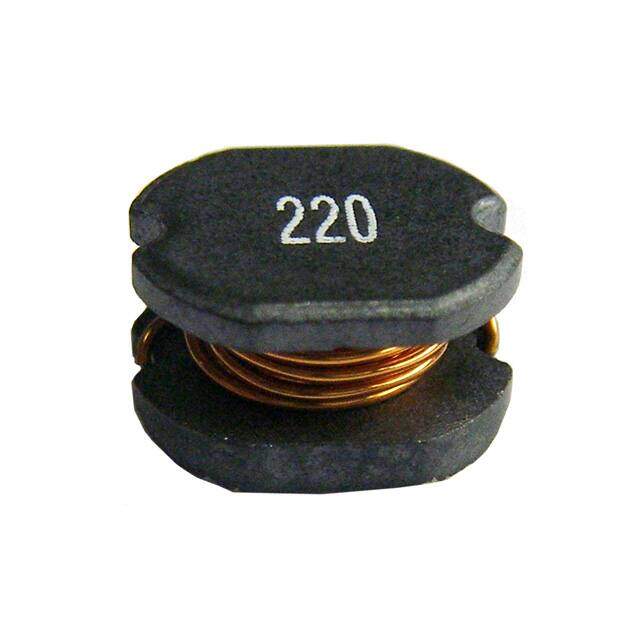

HM79-20101LFTR13 image
Favorite
HM79-20101LFTR13 image
Favorite

HM79-20101LFTR13

TT Electronics/BI Magnetics
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description HM79 Nonstandard 0.228Lx0.205W 5.80mmx5.20mm 100muH
PDF
/
Inventory: 8891
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 5.207mm
Length 5.7912mm
Height Seated (Max) 0.177 4.50mm
Height 4.4958mm

Technical

Self Resonant Frequency 100kHz
DC Current 520mA
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 700mOhm Max
Test Frequency 100kHz
Inductance 100μH
Military Standard Not
Current Rating 520mA
Depth 5.5mm
Shielding Unshielded
Current Rating (Amps) 520mA
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Tolerance ±20%
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
Series HM79
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
