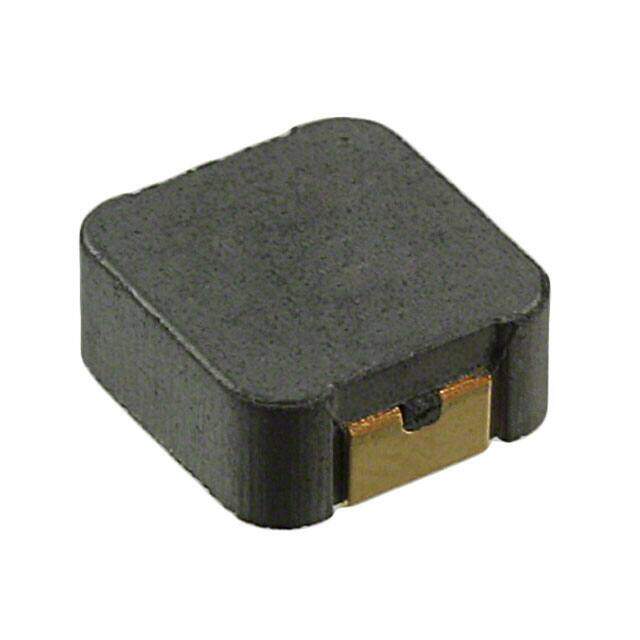

HM72B-06R82LFTR13 image
Favorite
HM72B-06R82LFTR13 image
Favorite

HM72B-06R82LFTR13

TT Electronics/BI Magnetics
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description FIXED IND 820NH 12A 8 MOHM SMD
PDF
/
Inventory: 2747
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mounting Type Surface Mount
Package / Case Nonstandard

Technical

Operating Temperature -40°C~130°C
Packaging Tape & Reel (TR)
Published 2010
Series HM72B
Size / Dimension 0.285Lx0.268W 7.23mmx6.80mm
Tolerance ±20%
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Molded
Current Rating (Amps) 12A
Shielding Unshielded
Inductance 820nH
DC Resistance (DCR) 8mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 24A

Dimensions

Height Seated (Max) 0.118 3.00mm

Alternative Model

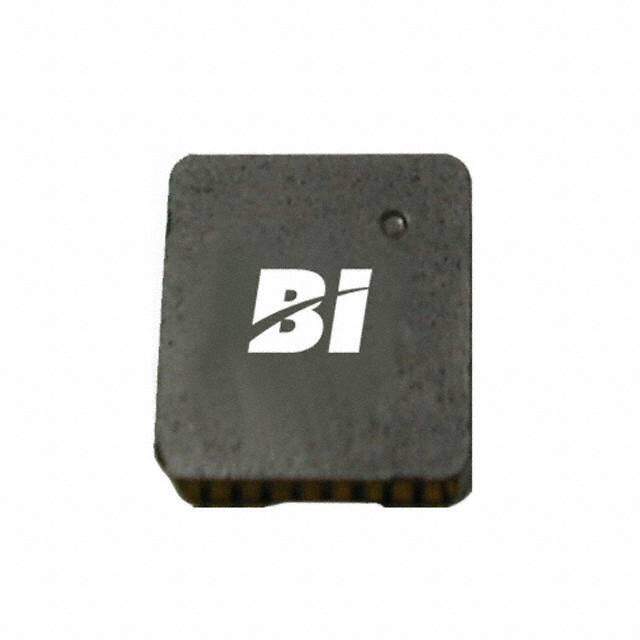

HM72A-06R82LFTR13

HM72A-06R82LFTR13

TT Electronics/BI Magnetics
