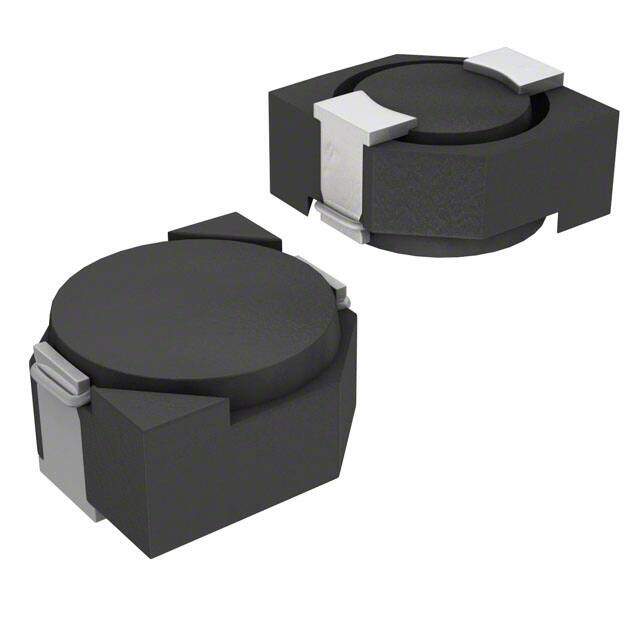

HM66-80470LFTR13 image
Favorite
HM66-80470LFTR13 image
Favorite

HM66-80470LFTR13

TT Electronics/BI Magnetics
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description HM66 Nonstandard 0.402Lx0.394W 10.20mmx10.00mm 47muH
PDF
/
Buying Options
Total Price: USD $1.02
Unit Price: USD $1.022648
≥1 USD $1.022648
≥10 USD $0.964759
≥100 USD $0.910157
≥500 USD $0.858643
≥1000 USD $0.810038
Inventory: 1286
Minimum: 1
-
+

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series HM66
Size / Dimension 0.402Lx0.394W 10.20mmx10.00mm
Tolerance ±20%
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 2.1A
Shielding Shielded
Depth 10.7mm
Current Rating 2.1A
Military Standard Not
Inductance 47μH
Test Frequency 100kHz
DC Resistance (DCR) 128mOhm Max
Inductance Frequency - Test 100kHz
DC Current 2.1A
Self Resonant Frequency 100kHz

Dimensions

Height 3.9878mm
Height Seated (Max) 0.157 4.00mm
Length 10.2108mm
Width 10.0076mm

Compliance

RoHS Status RoHS Compliant
