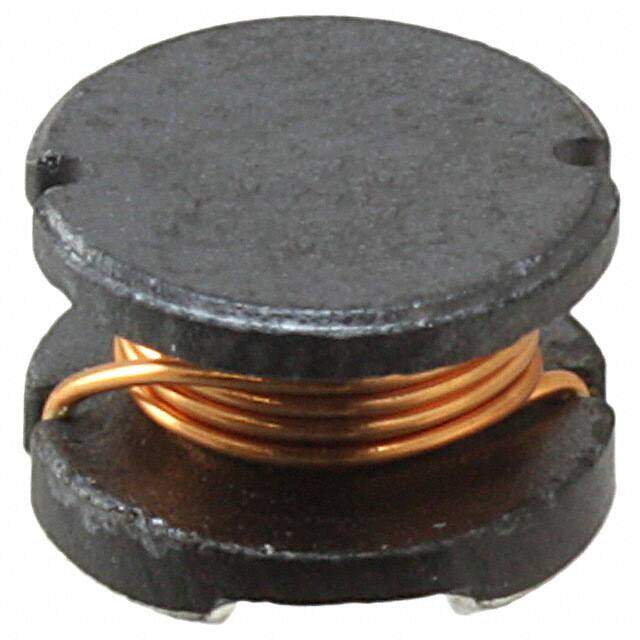

HM66-60120LFTR13
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
HM66 Nonstandard 0.264Lx0.264W 6.70mmx6.70mm 12muH
PDF
/
Buying Options
Total Price: USD $1.21
Unit Price: USD $1.2144
≥1 USD $1.2144
≥10 USD $1.02432
≥100 USD $0.93104
≥500 USD $0.875072
≥1000 USD $0.726176
≥3000 USD $0.670349
Inventory: 5842
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 6.7056mm
Length 6.7056mm
Height Seated (Max) 0.118 3.00mm
Height 2.9972mm
Technical
Self Resonant Frequency 100kHz
Inductance Frequency - Test 10kHz
DC Resistance (DCR) 70mOhm Max
Test Frequency 10kHz
Inductance 12μH
Current Rating 1.55A
Shielding Shielded
Current Rating (Amps) 1.55A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Tolerance ±20%
Size / Dimension 0.264Lx0.264W 6.70mmx6.70mm
Series HM66
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
