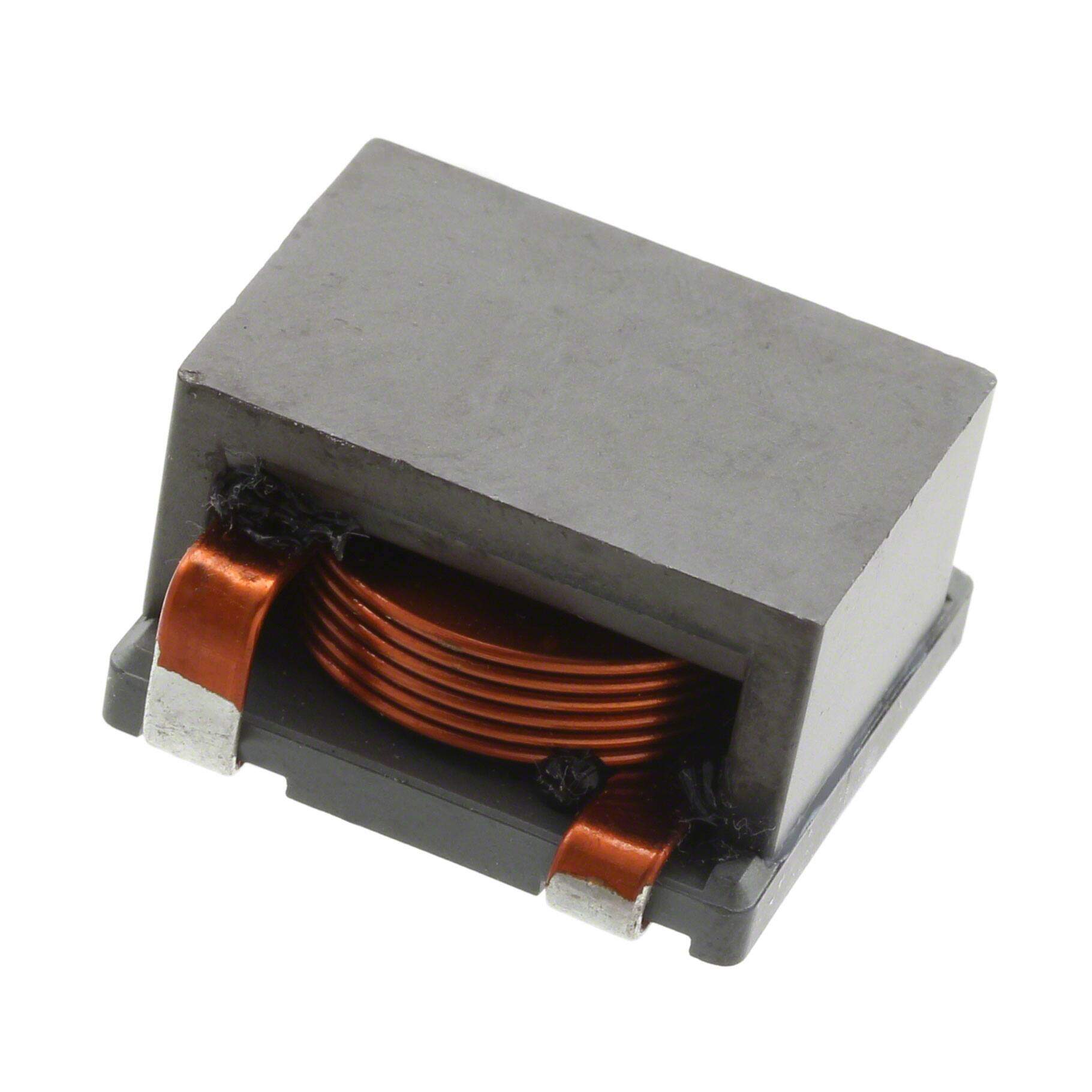

HA65A-251510RLF
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 10UH 2.6 MOHM SMD
PDF
/
Buying Options
Total Price: USD $4.93
Unit Price: USD $4.931769
≥1 USD $4.931769
≥10 USD $4.652614
≥100 USD $4.389254
≥500 USD $4.140807
≥1000 USD $3.906418
Inventory: 5499
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~155°C
Packaging Tray
Published 2015
Series HA65A
Size / Dimension 1.043Lx1.043W 26.50mmx26.50mm
Tolerance ±10%
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Shielding Unshielded
Inductance 10μH
DC Resistance (DCR) 2.6mOhm Max
Frequency - Self Resonant 14MHz
Inductance Frequency - Test 100kHz
Current - Saturation 31.8A
Dimensions
Height Seated (Max) 0.610 15.50mm
Compliance
RoHS Status Non-RoHS Compliant
Ratings AEC-Q200
