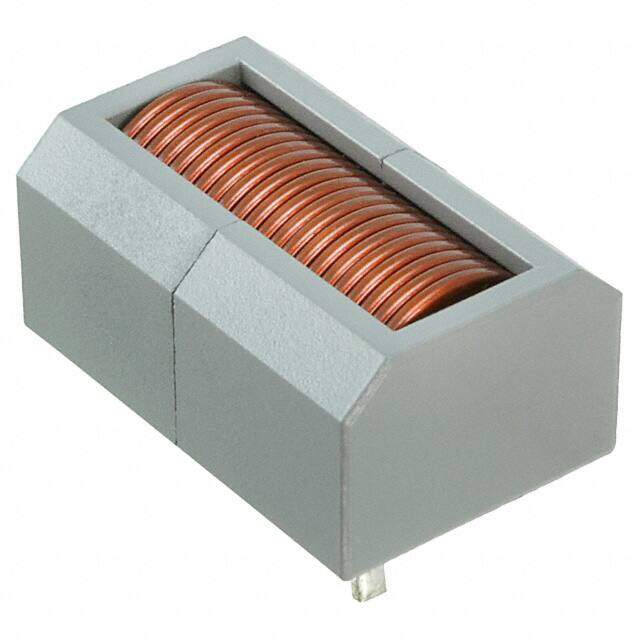

HA55-3623200LF
RoHS
/
Package Radial, Horizontal (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 20UH 33A 3.85 MOHM TH
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case Radial, Horizontal (Open)
Technical
Operating Temperature -40°C~155°C
Packaging Tray
Published 2004
Series HA55
Size / Dimension 1.417Lx0.906W 36.00mmx23.00mm
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 33A
Shielding Shielded
Inductance 20μH
DC Resistance (DCR) 3.85mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 35A
Dimensions
Height Seated (Max) 0.669 17.00mm
Alternative Model
