RoHS
RoHS RoHS compliant
Package Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors

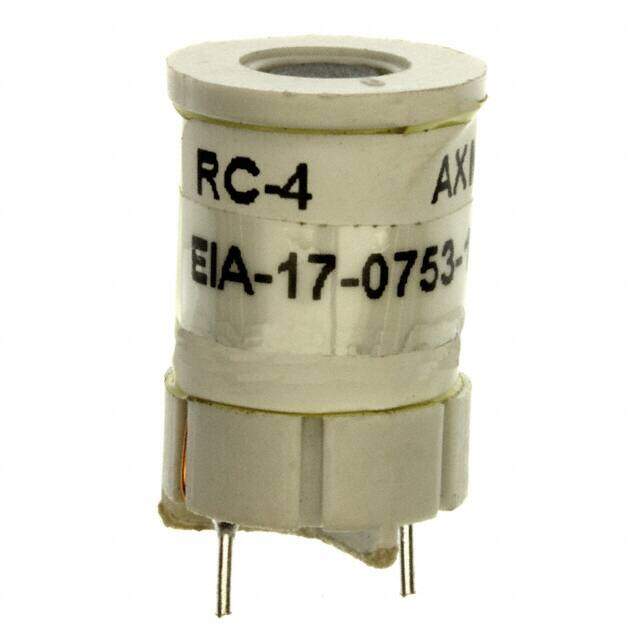

Description RC Radial Vertical Cylinder 0.600Dia 15.24mm 1.5mH
PDF
/
Buying Options
Total Price: USD $3.23
Unit Price: USD $3.2296
≥1 USD $3.2296
≥10 USD $2.7016
≥100 USD $2.467168
≥500 USD $2.11464
≥1000 USD $1.938464
≥3000 USD $1.87968
Inventory: 765
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 17 Weeks

Physical

Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Number of Pins 2
Weight 21.772434g
Material - Core Ferrite

Technical

Operating Temperature -40°C~85°C
Packaging Bulk
Series RC
Size / Dimension 0.600Dia 15.24mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Radial
Type Wirewound
Composition Wirewound
Current Rating (Amps) 500mA
Shielding Unshielded
Current Rating 500mA
Lead Pitch 9.53mm
Inductance 1.5mH
DC Resistance (DCR) 1.53Ohm
Max DC Current 500mA
Inductance Frequency - Test 10kHz

Dimensions

Diameter 15.2mm
Height 3.81mm
Height Seated (Max) 0.930 23.62mm
Length 9.3mm
Width 9.53mm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
