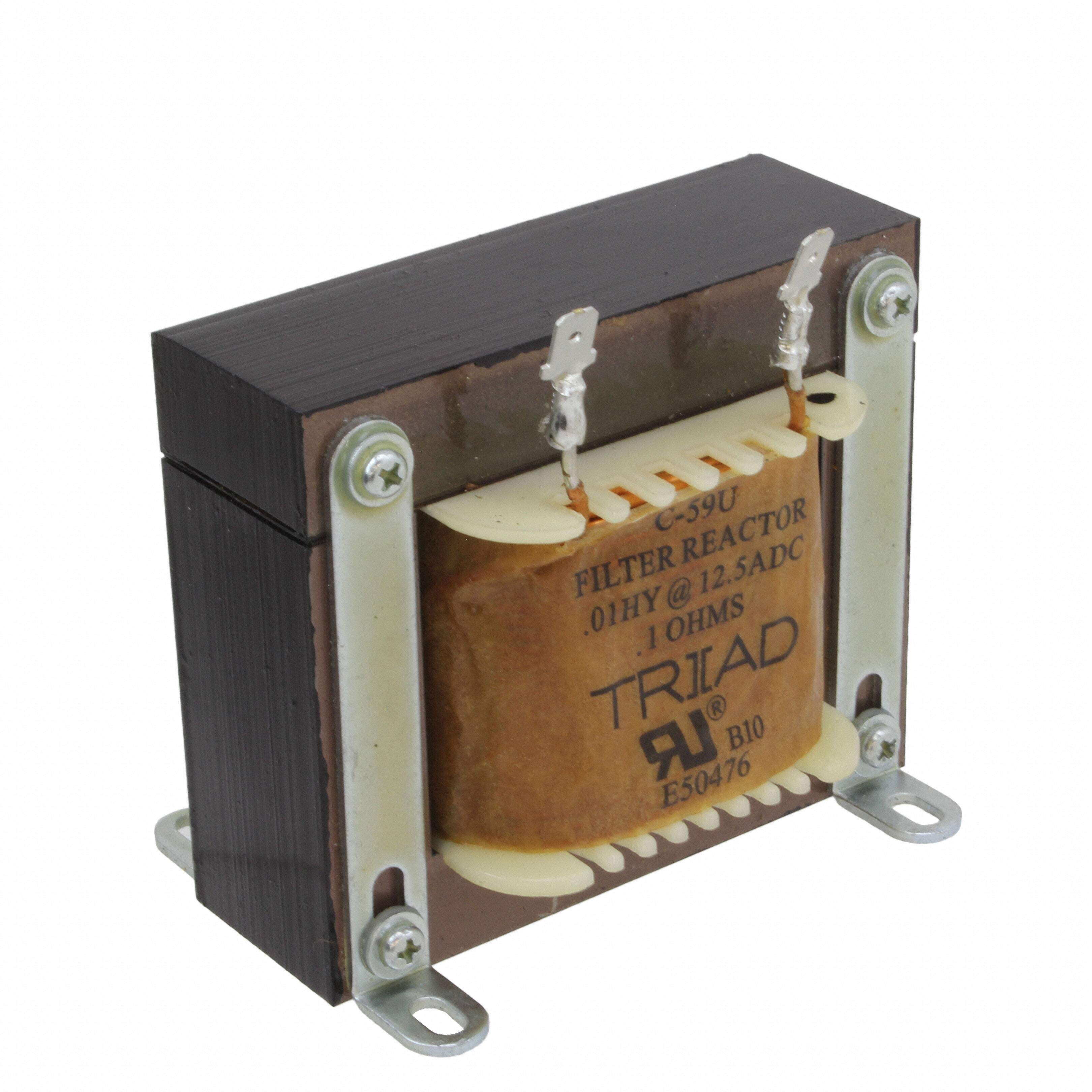

C-59U
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
C Nonstandard 4.125Lx3.000W 104.77mmx76.20mm 10mH
PDF
/
Buying Options
Total Price: USD $39.91
Unit Price: USD $39.908
≥1 USD $39.908
Inventory: 407
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount Panel, Surface Mount
Mounting Type Chassis Mount
Package / Case Nonstandard
Number of Pins 4
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2005
Series C
Size / Dimension 4.125Lx3.000W 104.77mmx76.20mm
Tolerance -20% +50%
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Lug
Type Wirewound
Composition Wirewound
Current Rating (Amps) 12.5A
Shielding Unshielded
Current Rating 12.5A
Lead Pitch 87.31mm
Inductance 10mH
DC Resistance (DCR) 100mOhm
Max DC Current 12.5A
Inductance Frequency - Test 120Hz
Dimensions
Height 88.9mm
Height Seated (Max) 3.500 88.90mm
Length 104.775mm
Width 76.2mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
