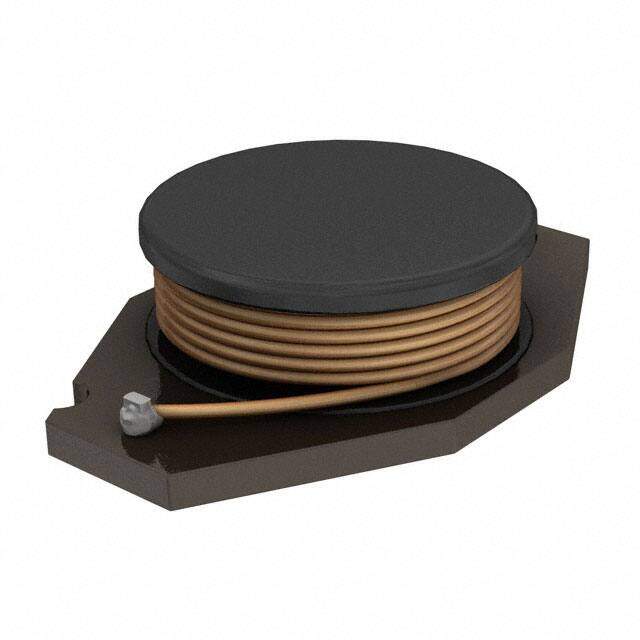

AX97-20102 image
Favorite
AX97-20102 image
Favorite

AX97-20102

Triad Magnetics
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description AX97 Nonstandard 0.530Lx0.370W 13.46mmx9.40mm 1mH
PDF
/
Inventory: 4148
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 17 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~85°C
Published 2006
Series AX97
Size / Dimension 0.530Lx0.370W 13.46mmx9.40mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Inductance 1mH
Test Frequency 100kHz
DC Resistance (DCR) 6Ohm Max
Max DC Current 50mA
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Case/Size Code 5337

Dimensions

Height 3.5mm
Height Seated (Max) 0.138 3.50mm

Compliance

RoHS Status ROHS3 Compliant
