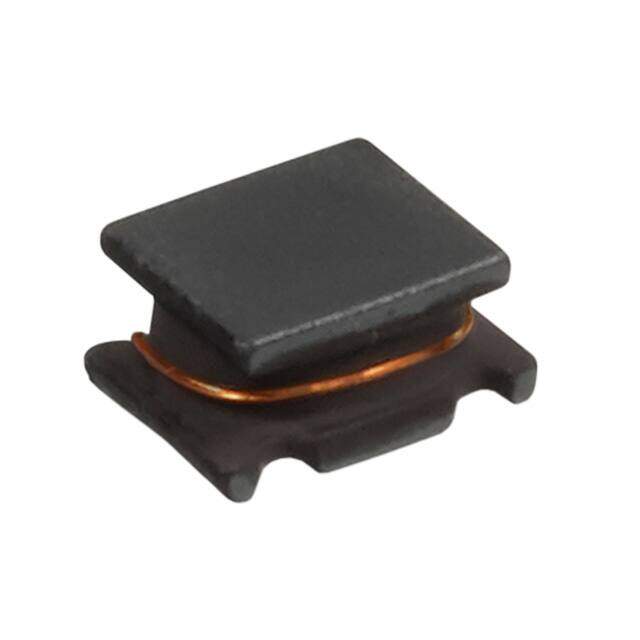

TCK-121
RoHS
RoHS compliant
RoHS compliantPackage 1210 (3225 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 15UH 700MA 570MOHM SMD
PDF
/
Buying Options
Total Price: USD $6.56
Unit Price: USD $6.556
≥1 USD $6.556
≥10 USD $5.39
≥100 USD $4.953344
≥500 USD $4.661888
≥1000 USD $4.50604
Inventory: 1481
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.067 1.70mm
Technical
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 570mOhm
Inductance 15μH
Shielding Unshielded
Current Rating (Amps) 700mA
Resistance 570mOhm
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Tolerance ±20%
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Packaging Bag
Operating Temperature -40°C~125°C
Physical
Package / Case 1210 (3225 Metric)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
