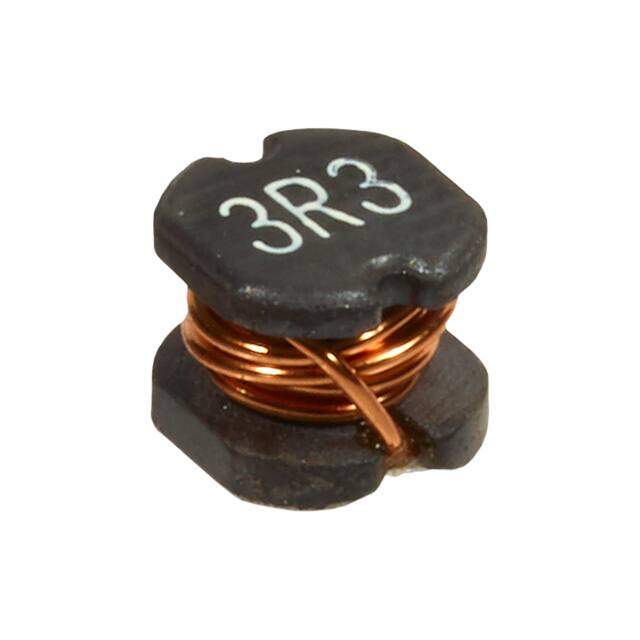

TCK-059
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
TCK-059 Nonstandard 0.228Lx0.205W 5.80mmx5.20mm 2.2muH
PDF
/
Buying Options
Total Price: USD $3.1
Unit Price: USD $3.0976
≥1 USD $3.0976
≥10 USD $2.59336
≥100 USD $2.367904
≥500 USD $2.029808
≥1000 USD $1.860584
≥3000 USD $1.804211
Inventory: 1528
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height Seated (Max) 0.199 5.05mm
Technical
Case/Size Code 2320
Inductor Type GENERAL PURPOSE INDUCTOR
Inductance Frequency - Test 1kHz
Terminal Placement DUAL ENDED
Impedance 25mOhm
DC Resistance (DCR) 25mOhm
Test Frequency 0.001MHz
Inductance 2.2μH
Current Rating 3.8A
Construction Choke Coil
Number of Functions 1
Shielding Unshielded
Current Rating (Amps) 4.8A
HTS Code 8504.50.80.00
Resistance 25mOhm
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Tolerance ±20%
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
Series TCK-059
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape ONE SURFACE
Surface Mount YES
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 13 Weeks

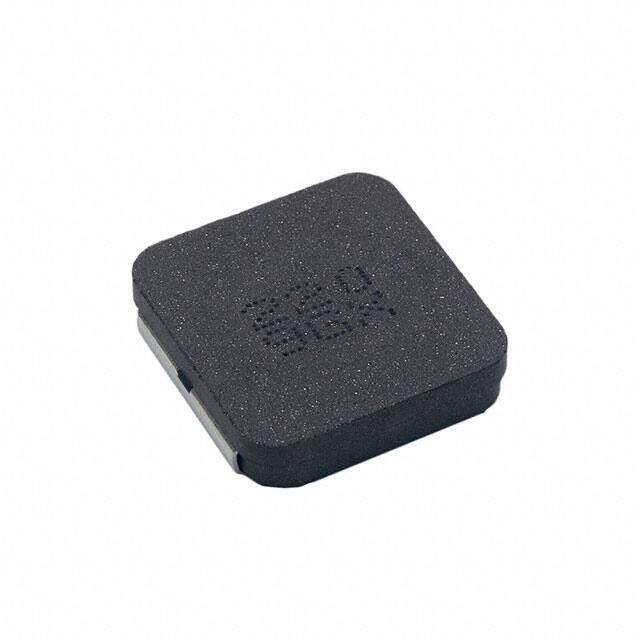

Alternative Model
