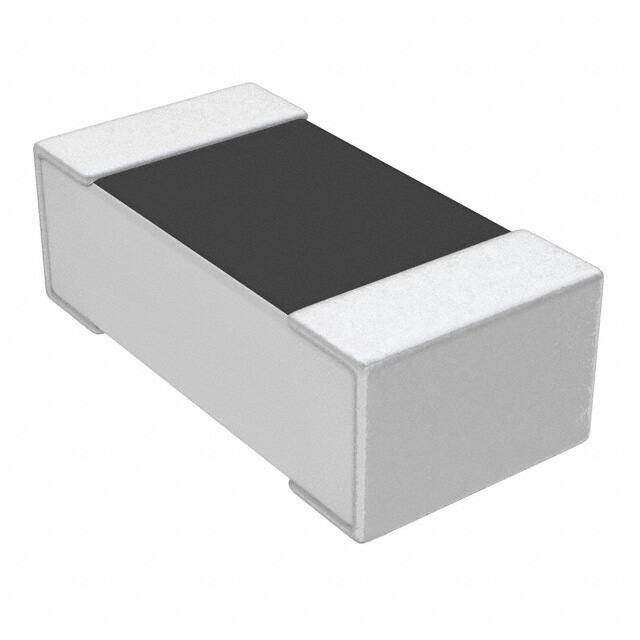

4-2176075-2
RoHS
RoHS compliant
RoHS compliantPackage 0201 (0603 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 4.7NH 130MA 1.4 OHM
PDF
/
Buying Options
Total Price: USD $0.18
Unit Price: USD $0.176
≥1 USD $0.176
≥10 USD $0.1452
≥100 USD $0.13376
≥500 USD $0.11792
≥1000 USD $0.103224
≥3000 USD $0.098314
Inventory: 736
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mounting Type Surface Mount
Package / Case 0201 (0603 Metric)
Technical
Packaging Cut Tape (CT)
Published 2012
Series 3640, Sigma Inductors
Size / Dimension 0.024Lx0.012W 0.60mmx0.30mm
Tolerance ±0.2nH
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Thin Film
Current Rating (Amps) 130mA
Shielding Unshielded
Inductance 4.7nH
DC Resistance (DCR) 1.4Ohm Max
Frequency - Self Resonant 6GHz
Q @ Freq 8 @ 500MHz
Inductance Frequency - Test 500MHz
Dimensions
Height Seated (Max) 0.011 0.28mm
Compliance
RoHS Status RoHS Compliant
