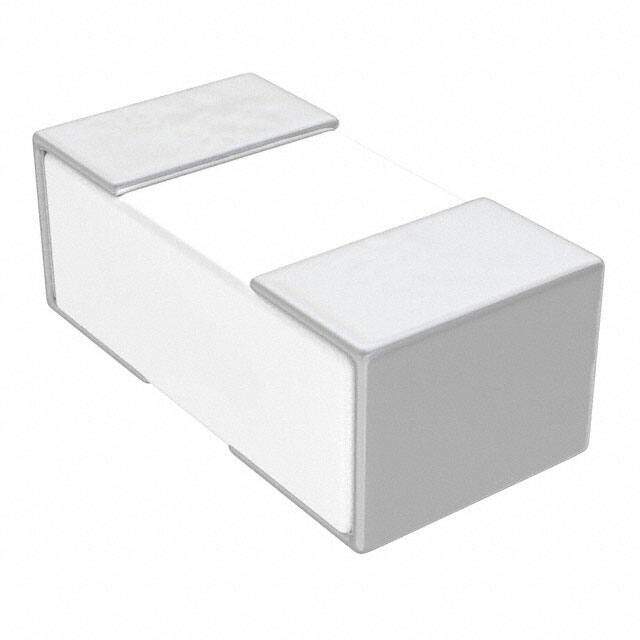

36401E6N8ATDF
RoHS
RoHS compliant
RoHS compliantPackage 0402 (1005 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
3640Sigma Inductors 0402 (1005Metric) 0.039Lx0.020W 1.00mmx0.50mm 6.8nH
PDF
/
Buying Options
Total Price: USD $0.17
Unit Price: USD $0.1672
≥1 USD $0.1672
≥10 USD $0.1408
≥100 USD $0.129184
≥500 USD $0.114048
≥1000 USD $0.099792
≥3000 USD $0.095005
Inventory: 4133
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Width 500μm
Length 1mm
Height Seated (Max) 0.015 0.37mm
Height 320μm
Technical
Q Factor 13
Inductance Frequency - Test 500MHz
Lead/Base Style SMD/SMT
Q @ Freq 13 @ 500MHz
Frequency - Self Resonant 6GHz
Max DC Current 260mA
DC Resistance (DCR) 1.05Ohm Max
Test Frequency 500MHz
Max Current Rating 260mA
ELV Compliant
Inductance 6.8nH
Frequency 300MHz
Current Rating 2.8A
Depth 500μm
Shielding Unshielded
Current Rating (Amps) 260mA
Composition Thin Film
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Resistance 1kOhm
Type Thin Film
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±0.2nH
Size / Dimension 0.039Lx0.020W 1.00mmx0.50mm
Series 3640, Sigma Inductors
Published 2007
Packaging Tape & Reel (TR)
Physical
Weight 652.039032μg
Supplier Device Package 0402 (1005 Metric)
Number of Pins 2
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 15 Weeks
