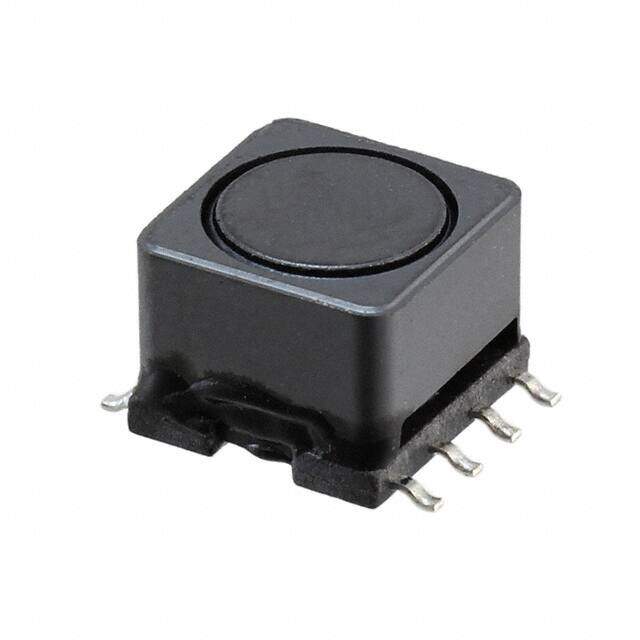

3632B222LT image
Favorite
3632B222LT image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description 3632Sigma Inductors Nonstandard 0.413Lx0.374W 10.50mmx9.50mm 2.2mH
PDF
/
Inventory: 3189
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 37 Weeks

Physical

Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Terminal Shape GULL WING
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -25°C~105°C
Packaging Tape & Reel (TR)
Published 2007
Series 3632, Sigma Inductors
Size / Dimension 0.413Lx0.374W 10.50mmx9.50mm
Tolerance ±15%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
HTS Code 8504.50.80.00
Current Rating (Amps) 200mA
Shielding Shielded
Number of Functions 1
Inductance 2.2mH
DC Resistance (DCR) 5Ohm Max
Frequency - Self Resonant 1MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL IN-LINE
Q @ Freq 95 @ 252kHz
Quality Factor-Min (at L-nom) 95
Inductance Frequency - Test 1kHz
Inductor Type GENERAL PURPOSE INDUCTOR
Rated Current-Max 0.2A

Dimensions

Height Seated (Max) 0.295 7.50mm

Compliance

RoHS Status RoHS Compliant
