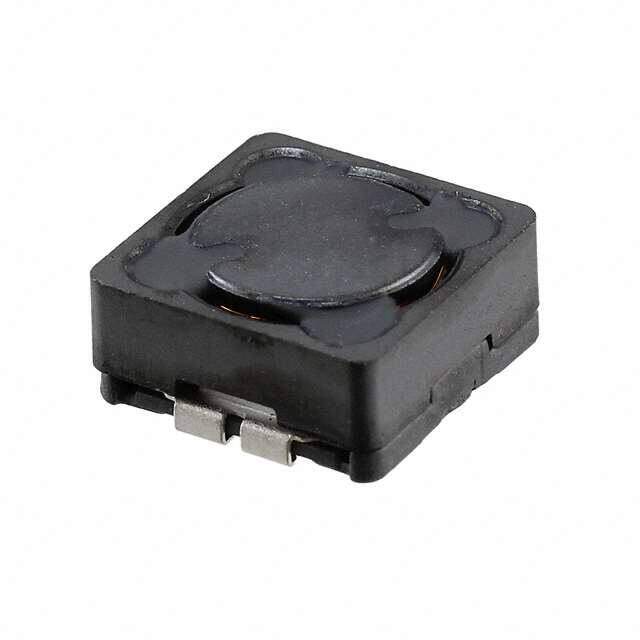

3631C180MT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
3631Sigma Inductors Nonstandard 0.500Lx0.500W 12.70mmx12.70mm 18muH
PDF
/
Buying Options
Total Price: USD $1.26
Unit Price: USD $1.256307
≥1 USD $1.256307
≥10 USD $1.185194
≥100 USD $1.118113
≥500 USD $1.054816
≥1000 USD $0.995111
Inventory: 1170
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 37 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Terminal Shape ONE SURFACE
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -25°C~105°C
Packaging Tape & Reel (TR)
Published 2007
Series 3631, Sigma Inductors
Size / Dimension 0.500Lx0.500W 12.70mmx12.70mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
HTS Code 8504.50.80.00
Current Rating (Amps) 3.9A
Packing Method TR
Shielding Shielded
Number of Functions 1
Construction Chip
Inductance 18μH
DC Resistance (DCR) 40mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 1kHz
Inductor Type GENERAL PURPOSE INDUCTOR
Case/Size Code 5050
Rated Current-Max 3.9A
Dimensions
Height Seated (Max) 0.335 8.50mm
Compliance
RoHS Status RoHS Compliant

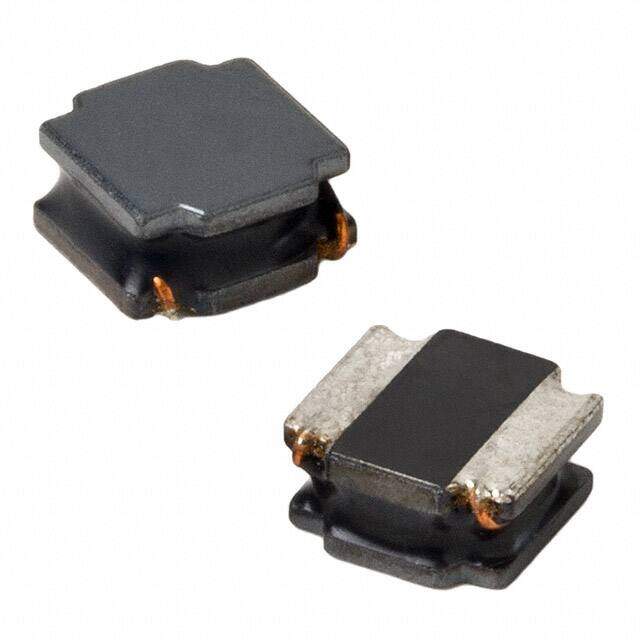

Alternative Model
