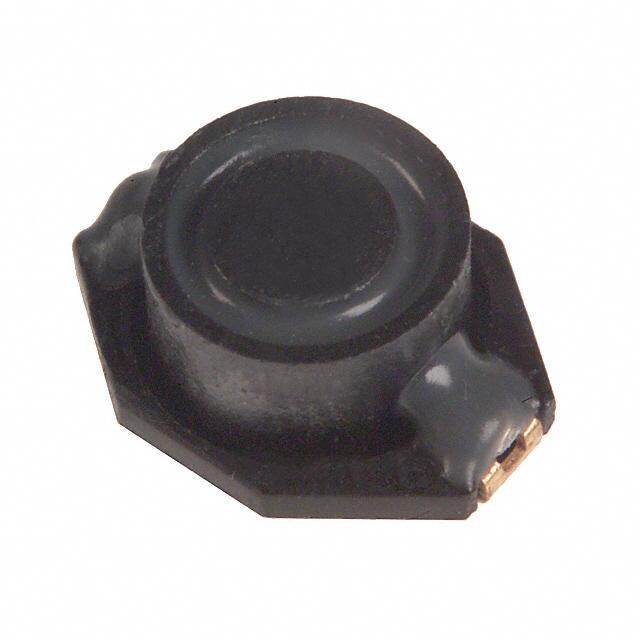

DS1145-2R2M
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Non-RoHS Compliant Contains Lead 2002 Tape & Reel (TR) fixed air core inductor 85C 100kHz 40mOhm 2.2muH
PDF
/
Inventory: 3058
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 8.2042mm
Length 10.6934mm
Height Seated (Max) 4.4958mm
Technical
DC Resistance (DCR) - Parallel 40mOhm
Current - Saturation 2.5A
Test Frequency 100kHz
Inductance 2.2 μH
Current Rating 2.5A
Shielding Shielded
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Tolerance 20%
Published 2002
Packaging Tape & Reel (TR)
Physical
Package / Case Nonstandard
Mount Surface Mount
