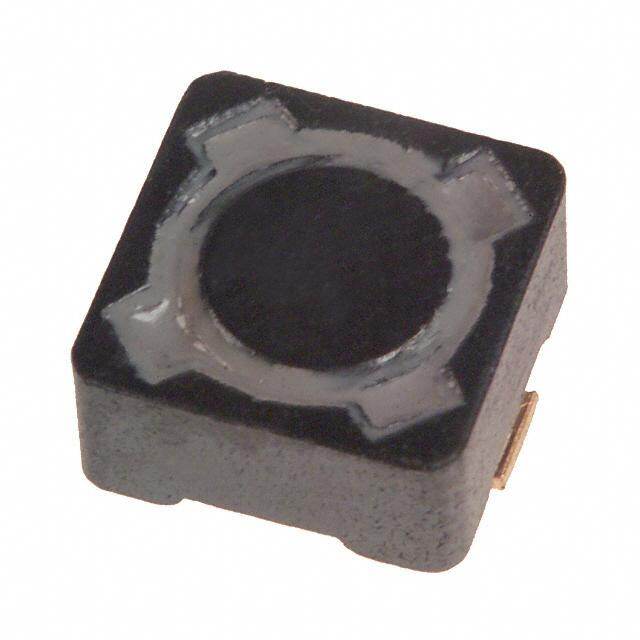

DQ7545-270M
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
GENERAL PURPOSE INDUCTOR Non-RoHS Compliant Contains Lead WRAPAROUND Fixed Inductor 85C 100kHz 150mOhm 27muH
PDF
/
Inventory: 5790
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Technical
Packaging Tape & Reel (TR)
Published 2002
Tolerance 20%
Number of Terminations 2
ECCN Code EAR99
Max Operating Temperature 85°C
Min Operating Temperature -40°C
HTS Code 8504.50.80.00
Shielding Shielded
Number of Functions 1
Current Rating 1.12A
Inductance 27 μH
Test Frequency 100kHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 1.12A
DC Resistance (DCR) - Parallel 150mOhm
Inductance-Nom (L) 27 μH
Dimensions
Height Seated (Max) 4.4958mm
Length 7.493mm
Width 7.493mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
