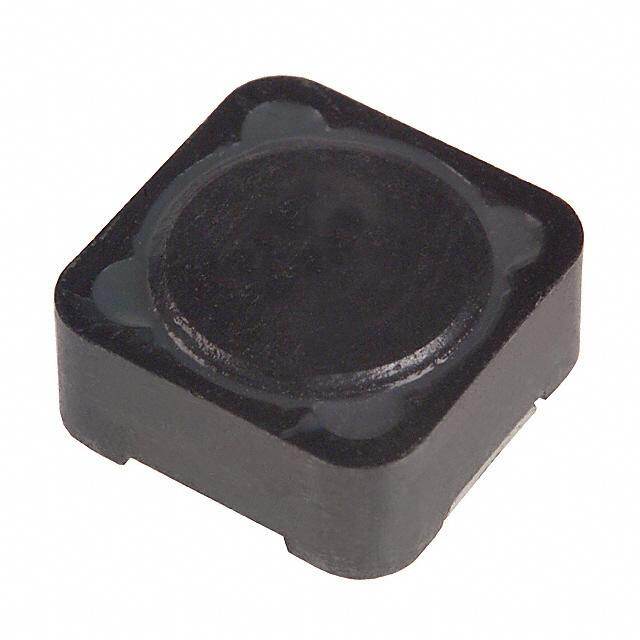

DQ1280-270M
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
GENERAL PURPOSE INDUCTOR Non-RoHS Compliant Contains Lead WRAPAROUND Fixed Inductor 85C 100kHz 46mOhm 27muH
PDF
/
Inventory: 4007
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 12.8016mm
Length 12.8016mm
Height Seated (Max) 8.001mm
Technical
Inductance-Nom (L) 27 μH
DC Resistance (DCR) - Parallel 46mOhm
Case/Size Code 4949
Current - Saturation 3.4A
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Test Frequency 100kHz
Inductance 27 μH
Current Rating 3.4A
Number of Functions 1
Shielding Shielded
Packing Method TR
HTS Code 8504.50.80.00
Min Operating Temperature -40°C
Max Operating Temperature 85°C
ECCN Code EAR99
Number of Terminations 2
Pbfree Code no
Tolerance 20%
Series DQ1280
Packaging Tape & Reel (TR)
Physical
Core Material AMORPHOUS MAGNETIC
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mount Surface Mount
