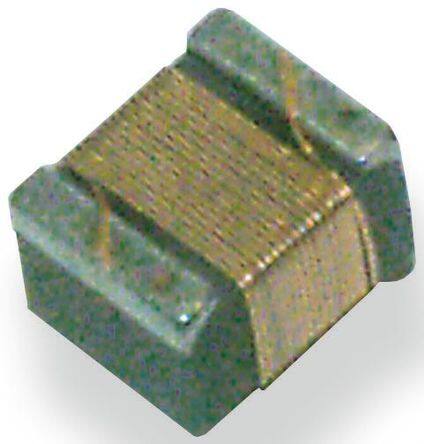

36541E27NJTDG
RoHS
/
Package /
Category Inductors, Coils, Chokes / Fixed Inductors
Description
GENERAL PURPOSE INDUCTOR RoHS Compliant 2012 8504.50.80.00 Fixed Inductor 125C 3.2GHz 275mOhm 27nH
PDF
/
Inventory: 2217
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Technical
Packaging Cut Tape
Published 2012
Tolerance 5%
ECCN Code EAR99
Max Operating Temperature 125°C
Min Operating Temperature -40°C
HTS Code 8504.50.80.00
Packing Method TR
Depth 700μm
Construction Rectangular
Case Code (Metric) 1005
Case Code (Imperial) 0402
Inductance 27 nH
Max DC Current 450mA
Frequency - Self Resonant 3.2GHz
Inductor Type GENERAL PURPOSE INDUCTOR
Case/Size Code 0403
DC Resistance (DCR) - Parallel 275mOhm
Inductance Tolerance 5%
Inductance-Nom (L) 0.027 μH
Dimensions
Height 600μm
Length 1.15mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
