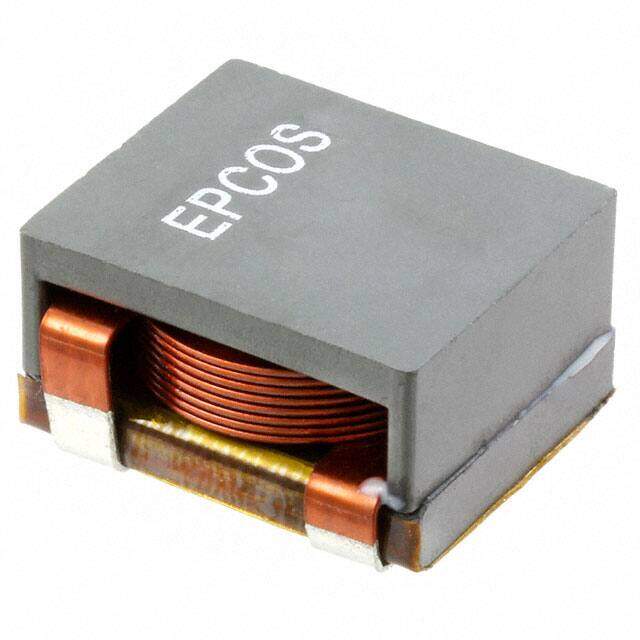

B82559A7103A020 image
Favorite
B82559A7103A020 image
Favorite

B82559A7103A020

TDK Electronics Inc.
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description EPCOS B82559A7103A020Surface Mount Power Inductor, B82559 Series, 10 H,10%, Shielded, 3900 ohm
PDF
/
Buying Options
Total Price: USD $6.46
Unit Price: USD $6.4592
≥1 USD $6.4592
≥10 USD $5.23072
≥100 USD $4.649568
≥500 USD $4.391376
Inventory: 928
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.437 11.10mm

Technical

Current - Saturation 18.3A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 3.9mOhm Max
Inductance 10μH
Shielding Shielded
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.846Lx0.827W 21.50mmx21.00mm
Series ERU20
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C

Physical

Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
