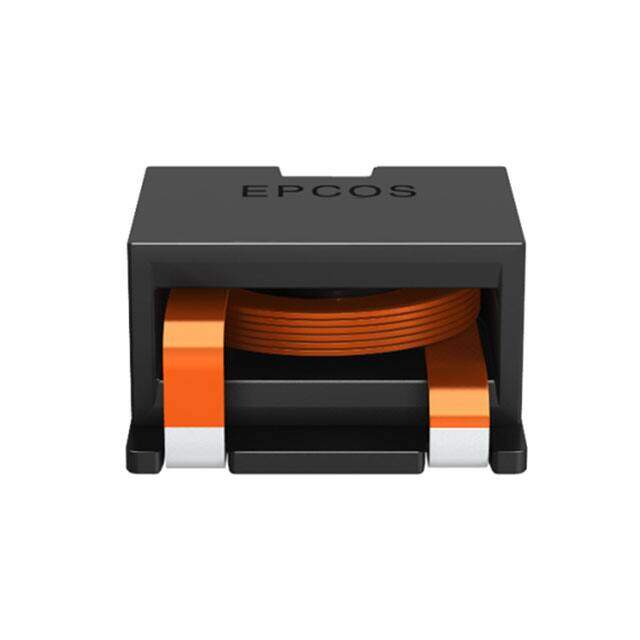

B82559A0153A016
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 15UH 11A 11.1 MOHM
PDF
/
Buying Options
Total Price: USD $2.25
Unit Price: USD $2.2528
≥1 USD $2.2528
Inventory: 123
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.378 9.60mm
Technical
Current - Saturation 12.6A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 11.1mOhm Max
Inductance 15μH
Shielding Shielded
Current Rating (Amps) 11A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.736Lx0.681W 18.70mmx17.30mm
Series ERU16
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
