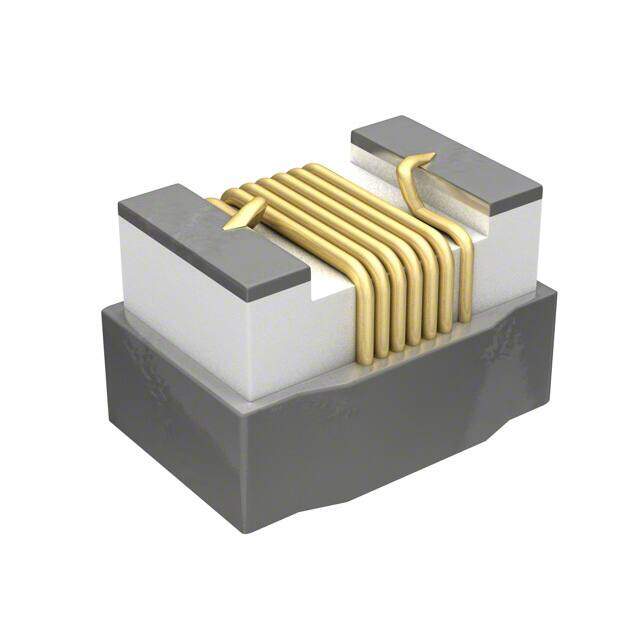

B82498F3471G000
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Inductor Chip Molded Wirewound 470nH 2% 50MHz 30Q-Factor Ceramic 190mA 1.9Ohm DCR 0805 Automotive Blister T/R
PDF
/
Buying Options
Total Price: USD $0.6
Unit Price: USD $0.5984
≥1 USD $0.5984
≥10 USD $0.51656
≥100 USD $0.47344
≥500 USD $0.43032
≥1000 USD $0.383064
≥3000 USD $0.361539
Inventory: 8250
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 0805 (2012 Metric)
Material - Core Ceramic
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2012
Series SIMID
Size / Dimension 0.091Lx0.067W 2.30mmx1.70mm
Tolerance ±2%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 190mA
Shielding Unshielded
Inductance 470nH
DC Resistance (DCR) 1.9Ohm Max
Frequency - Self Resonant 650MHz
Q @ Freq 30 @ 100MHz
Inductance Frequency - Test 50MHz
Dimensions
Height Seated (Max) 0.055 1.40mm
Compliance
RoHS Status ROHS3 Compliant
