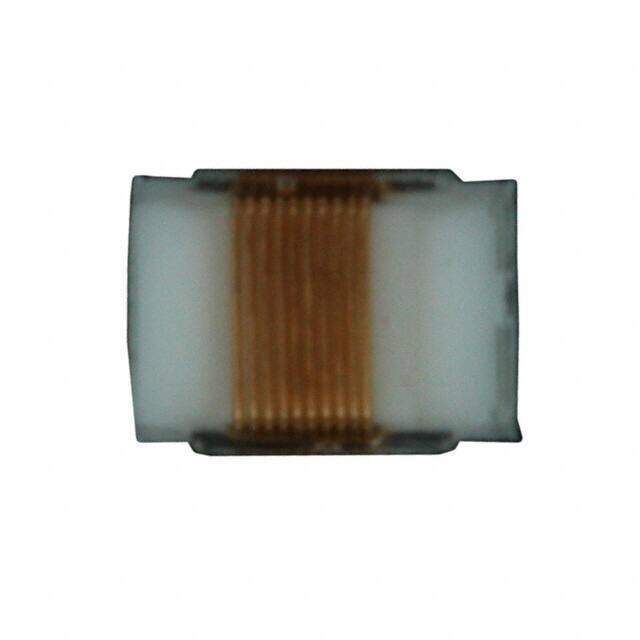

B82498F3101J000
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
100nH Unshielded Wirewound Inductor 450mA 280 mOhm Max 0805 (2012 Metric)
PDF
/
Buying Options
Total Price: USD $0.5
Unit Price: USD $0.5016
≥1 USD $0.5016
≥10 USD $0.42592
≥100 USD $0.39072
≥500 USD $0.355344
≥1000 USD $0.316184
≥3000 USD $0.298461
Inventory: 1194
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 0805 (2012 Metric)
Material - Core Ceramic
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2012
Series SIMID
Size / Dimension 0.091Lx0.067W 2.30mmx1.70mm
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 450mA
Shielding Unshielded
Inductance 100nH
DC Resistance (DCR) 280mOhm Max
Frequency - Self Resonant 1.35GHz
Q @ Freq 55 @ 500MHz
Inductance Frequency - Test 150MHz
Dimensions
Height Seated (Max) 0.055 1.40mm
Compliance
RoHS Status ROHS3 Compliant
