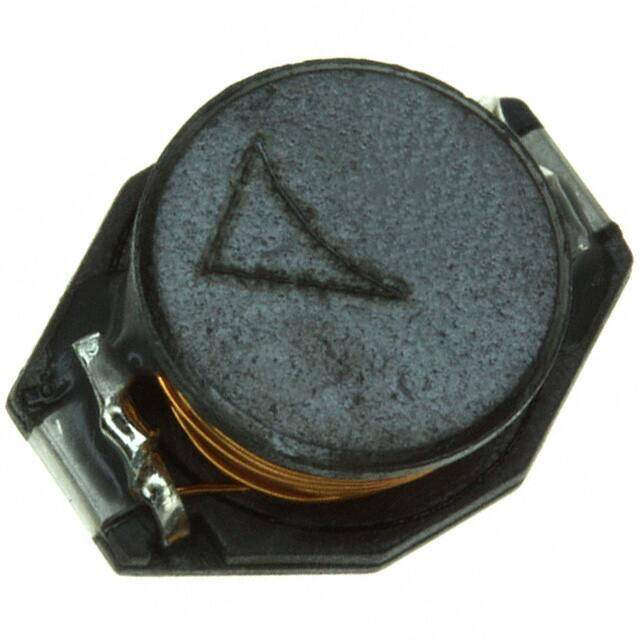

B82476A1222M000
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Inductor Power Unshielded Wirewound 2.2uH 20% 100KHz Ferrite 6.1A 10.5mOhm DCR Automotive Blister T/R
PDF
/
Inventory: 8658
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.200 5.08mm
Technical
Current - Saturation 7A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 10.5mOhm Max
Inductance 2.2μH
Shielding Unshielded
Current Rating (Amps) 6.1A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.510Lx0.370W 12.95mmx9.40mm
Series B82476A1
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
