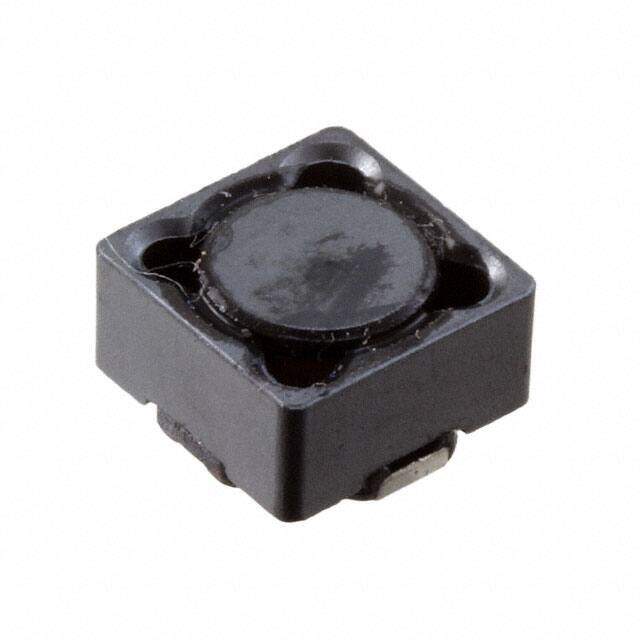

B82472P6333M000
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
EPCOS B82472P6333M000 Surface Mount Power Inductor, B82472P6 Series, 33 H, 1.15 A, 1.05 A, Shielded, 0.15 ohm
PDF
/
Buying Options
Total Price: USD $1.5
Unit Price: USD $1.5048
≥1 USD $1.5048
≥10 USD $1.28304
≥100 USD $1.182368
≥500 USD $1.056352
≥1000 USD $0.880352
≥3000 USD $0.855219
Inventory: 599
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -55°C~150°C
Packaging Tape & Reel (TR)
Series B82472P6
Size / Dimension 0.287Lx0.287W 7.30mmx7.30mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 1.15A
Shielding Shielded
Inductance 33μH
DC Resistance (DCR) 150mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 1.05A
Dimensions
Height Seated (Max) 0.177 4.50mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
