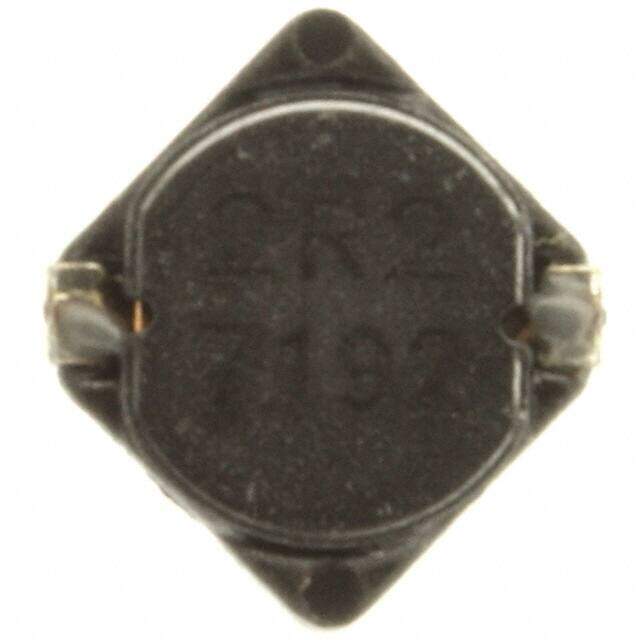

B82470A1222M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 2.2UH 1.35A 90 MOHM
PDF
/
Inventory: 3469
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.047 1.20mm
Technical
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 90mOhm Max
Inductance 2.2μH
Shielding Unshielded
Current Rating (Amps) 1.35A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±20%
Size / Dimension 0.189Lx0.189W 4.80mmx4.80mm
Series B82470-A1-M
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
