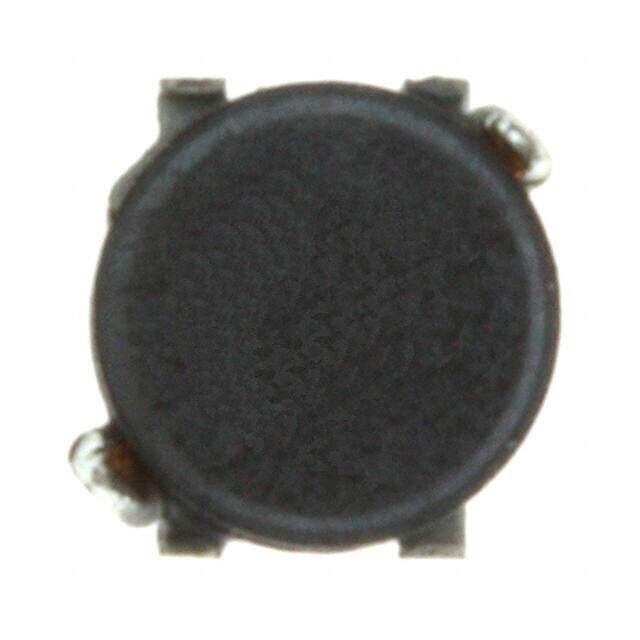

B82468A4103M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
B82468A4 Nonstandard 0.118Lx0.118W x 0.055H 3.00mmx3.00mmx1.40mm 10muH
PDF
/
Inventory: 4184
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Number of Functions 1
Reach Compliance Code unknown
Operating Temperature (Max) 125°C
Operating Temperature (Min) -55°C
Inductance 10μH
Test Frequency 0.1MHz
DC Resistance (DCR) 330mOhm
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Current - Saturation 900mA
Rated Current-Max 0.75A
Shielding NO
Current Rating (Amps) 750mA
HTS Code 8504.50.80.00
Terminal Finish TIN OVER NICKEL
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.118Lx0.118W x 0.055 H 3.00mmx3.00mmx1.40mm
Series B82468A4
Packaging Cut Tape (CT)
Compliance
RoHS Status ROHS3 Compliant
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case Nonstandard
Mounting Type Surface Mount
