B82467G102M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Obsolete Tape & Reel (TR) fixed air core inductor -55C~125C 100kHz 50mOhm 1muH
PDF
/
Inventory: 5758
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.039 1.00mm
Technical
Current - Saturation 1.475A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 50mOhm
Inductance 1μH
Shielding Shielded
Current Rating (Amps) 1.6A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±20%
Size / Dimension 0.110Lx0.102W 2.80mmx2.60mm
Series B82467G0
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount

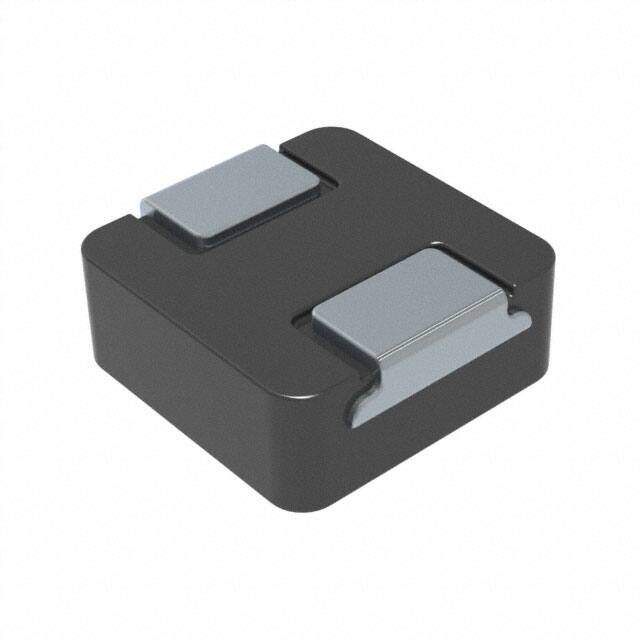

Alternative Model
