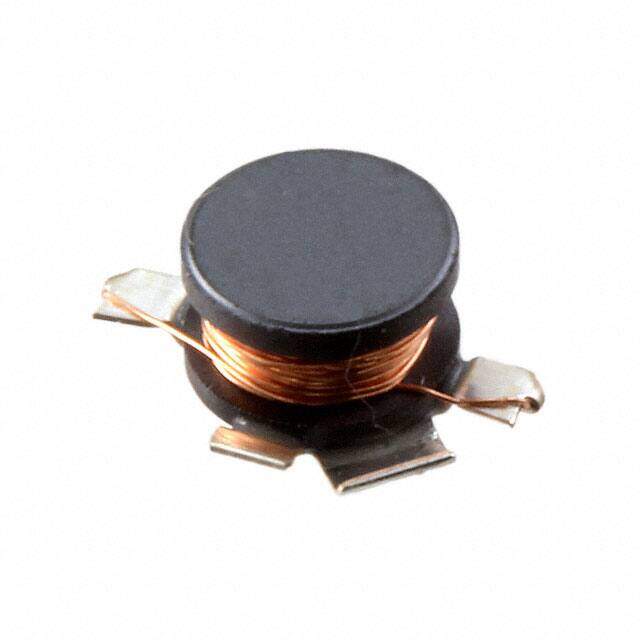

B82462A4103M000
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
10μH Unshielded Wirewound Inductor 1.15A 140 mOhm Max Nonstandard
PDF
/
Buying Options
Total Price: USD $1.14
Unit Price: USD $1.144
≥1 USD $1.144
≥10 USD $0.97064
≥100 USD $0.882464
≥500 USD $0.829488
≥1000 USD $0.688248
≥3000 USD $0.63529
Inventory: 2108
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.118 3.00mm
Technical
Current - Saturation 1.8A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 32MHz
DC Resistance (DCR) 140mOhm Max
Inductance 10μH
Shielding Unshielded
Current Rating (Amps) 1.15A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.236Lx0.236W 6.00mmx6.00mm
Series B82462-A4
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
