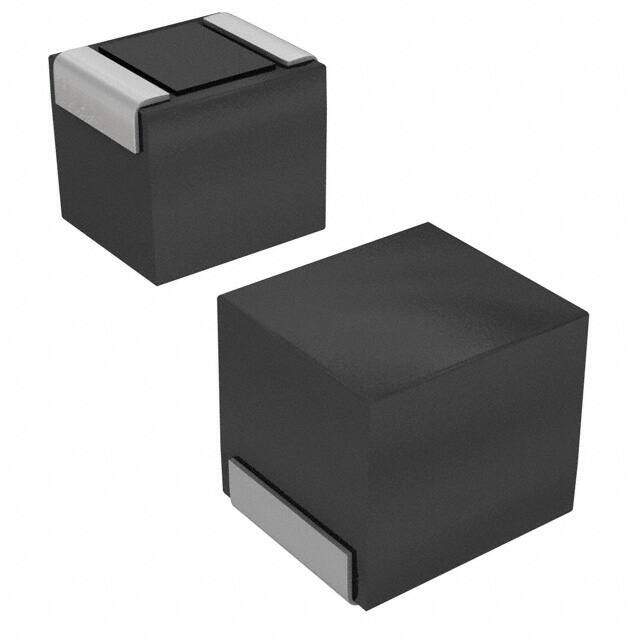

B82442T1103K050
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, J-Lead
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Ind General Purpose Chip Molded Wirewound 10uH 10% 2.52MHz 15Q-Factor Ferrite 1.42A 2220 Blister T/R
PDF
/
Buying Options
Total Price: USD $1.26
Unit Price: USD $1.2584
≥1 USD $1.2584
≥10 USD $1.06392
≥100 USD $0.966944
≥500 USD $0.90904
≥1000 USD $0.754248
≥3000 USD $0.696256
Inventory: 2892
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Surface Mount
Package / Case 2-SMD, J-Lead
Supplier Device Package 2220 (5650 Metric)
Material - Core Ferrite
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2015
Series SIMID
Size / Dimension 0.220Lx0.197W 5.60mmx5.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 1.42A
Shielding Unshielded
Inductance 10μH
DC Resistance (DCR) 132mOhm Max
Frequency - Self Resonant 19MHz
Q @ Freq 15 @ 2.52MHz
Inductance Frequency - Test 2.52MHz
Current - Saturation 2.28A
Dimensions
Height Seated (Max) 0.209 5.30mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
