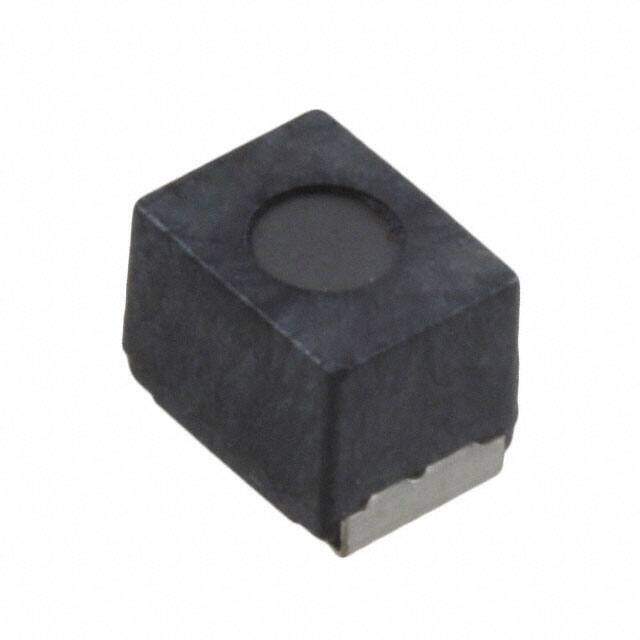

B82432T1822K000
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, J-Lead
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Inductor Chip Molded Wirewound 8.2uH 10% 7.96MHz 10Q-Factor Ferrite 670mA 330mOhm DCR 1812 Blister T/R
PDF
/
Buying Options
Total Price: USD $0.75
Unit Price: USD $0.748
≥1 USD $0.748
≥10 USD $0.63976
≥100 USD $0.586432
≥500 USD $0.533104
≥1000 USD $0.474408
≥3000 USD $0.447779
Inventory: 2403
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.134 3.40mm
Technical
Inductance Frequency - Test 7.96MHz
Q @ Freq 10 @ 7.96MHz
Frequency - Self Resonant 30MHz
DC Resistance (DCR) 330mOhm Max
Inductance 8.2μH
Shielding Unshielded
Current Rating (Amps) 670mA
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.177Lx0.126W 4.50mmx3.20mm
Series SIMID
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C
Physical
Material - Core Ferrite
Supplier Device Package 1812 (4532 Metric)
Package / Case 2-SMD, J-Lead
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
