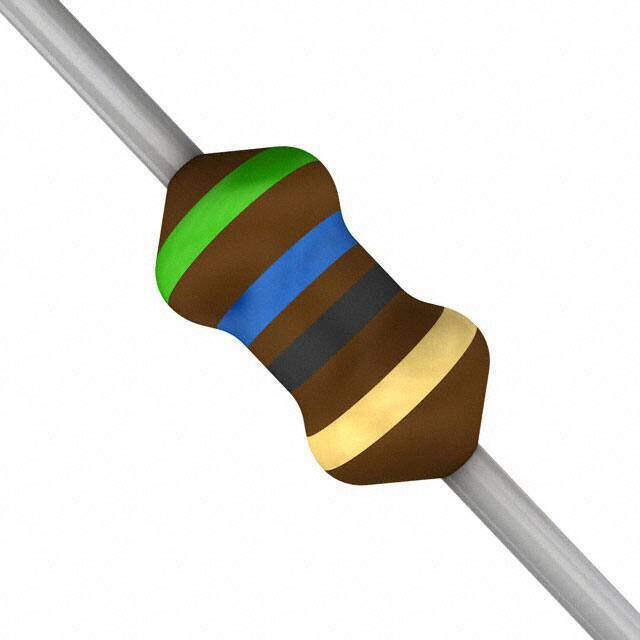

B82141A1563J000
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RF Choke Drum Core 56uH 5% 100KHz 55Q-Factor Ferrite 195mA 2.6Ohm DCR AXL T/R
PDF
/
Buying Options
Total Price: USD $0.16
Unit Price: USD $0.157344
≥1 USD $0.157344
≥200 USD $0.06089
≥500 USD $0.05875
≥1000 USD $0.057693
Inventory: 4956
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Through Hole
Package / Case Axial
Material - Core Ferrite
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series SBC
Size / Dimension 0.118Diax0.268L 3.00mmx6.80mm
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 195mA
Shielding Unshielded
Inductance 56μH
DC Resistance (DCR) 2.6Ohm Max
Frequency - Self Resonant 6.8MHz
Q @ Freq 55 @ 2.52MHz
Inductance Frequency - Test 2.52MHz
Compliance
RoHS Status ROHS3 Compliant
