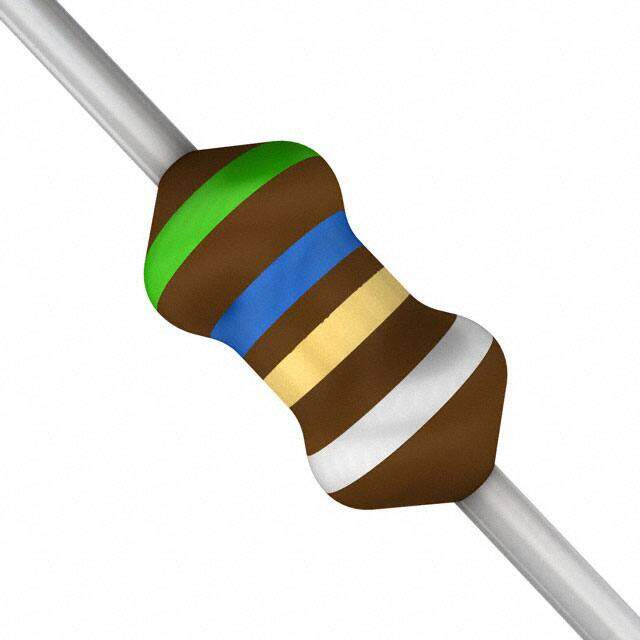

B82141A1562K000
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RF Choke Bobbin Core 5.6uH 10% 1MHz 50Q-Factor Ferrite 510mA 380mOhm DCR AXL T/R
PDF
/
Inventory: 7377
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Through Hole
Package / Case Axial
Material - Core Ferrite
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2016
Series SBC
Size / Dimension 0.118Diax0.268L 3.00mmx6.80mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 510mA
Shielding Unshielded
Inductance 5.6μH
DC Resistance (DCR) 380mOhm Max
Frequency - Self Resonant 50MHz
Q @ Freq 50 @ 7.96MHz
Inductance Frequency - Test 7.96MHz
Compliance
RoHS Status ROHS3 Compliant

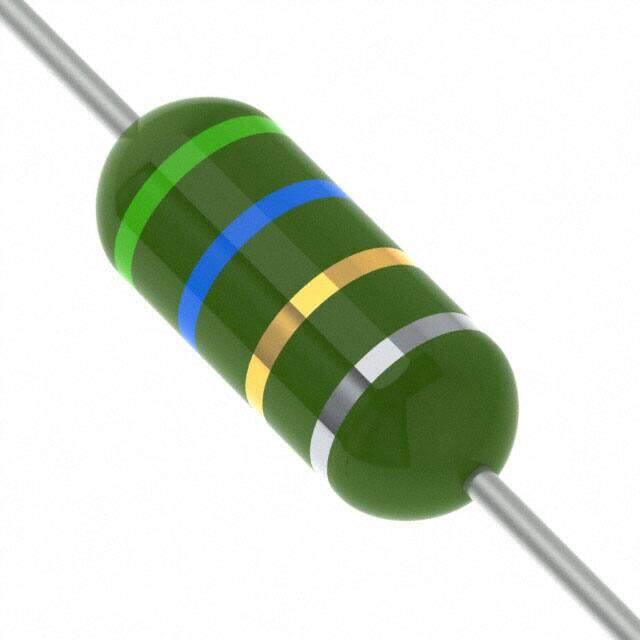

Alternative Model
