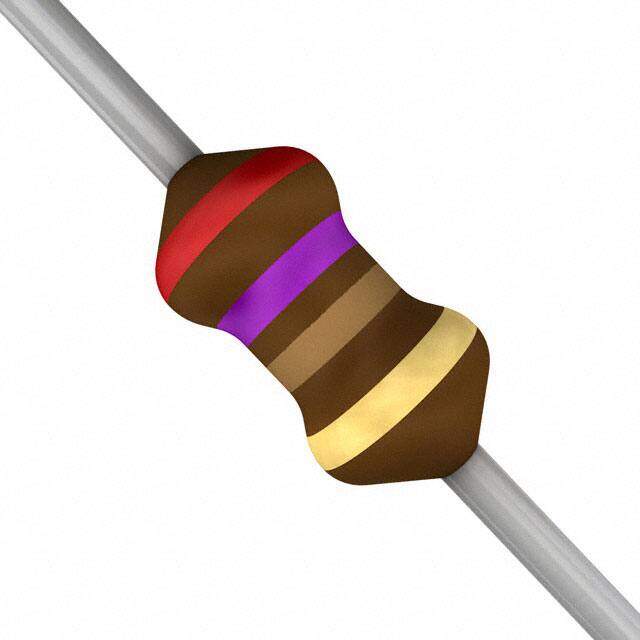

B82141A1274J000
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RF Choke Drum Core 270uH 5% 100KHz 60Q-Factor Ferrite 115mA 7.8Ohm DCR AXL T/R
PDF
/
Buying Options
Total Price: USD $0.15
Unit Price: USD $0.1522
≥1 USD $0.1522
≥200 USD $0.058899
≥500 USD $0.056829
≥1000 USD $0.055807
Inventory: 2042
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Through Hole
Package / Case Axial
Material - Core Ferrite
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2016
Series SBC
Size / Dimension 0.118Diax0.268L 3.00mmx6.80mm
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 115mA
Shielding Unshielded
Inductance 270μH
DC Resistance (DCR) 7.8Ohm Max
Frequency - Self Resonant 3.2MHz
Q @ Freq 60 @ 796kHz
Inductance Frequency - Test 796kHz
Compliance
RoHS Status ROHS3 Compliant
