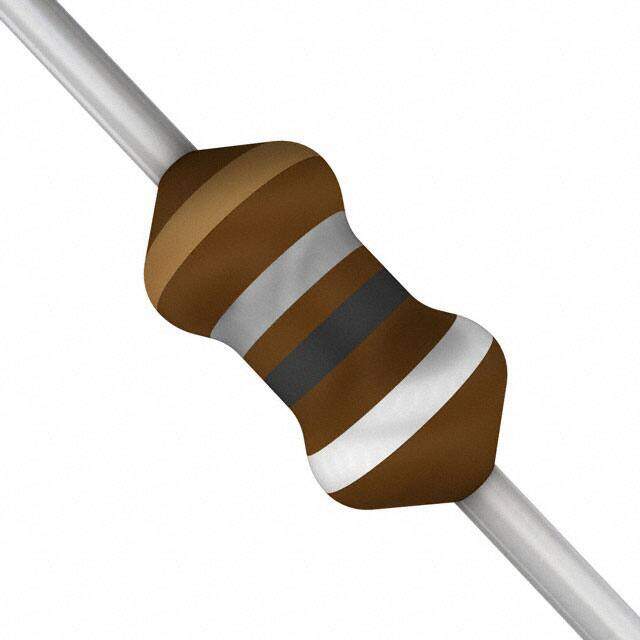

B82141A1183K000
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RF Choke Bobbin Core 18uH 10% 100KHz 55Q-Factor Ferrite 350mA 810mOhm DCR AXL T/R
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.5456
≥1 USD $0.5456
≥10 USD $0.46464
≥100 USD $0.425568
≥500 USD $0.386848
≥1000 USD $0.344256
≥3000 USD $0.324966
Inventory: 4531
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Through Hole
Package / Case Axial
Material - Core Ferrite
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2016
Series SBC
Size / Dimension 0.118Diax0.268L 3.00mmx6.80mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 350mA
Shielding Unshielded
Inductance 18μH
DC Resistance (DCR) 810mOhm Max
Frequency - Self Resonant 14MHz
Q @ Freq 55 @ 2.52MHz
Inductance Frequency - Test 2.52MHz
Compliance
RoHS Status ROHS3 Compliant
