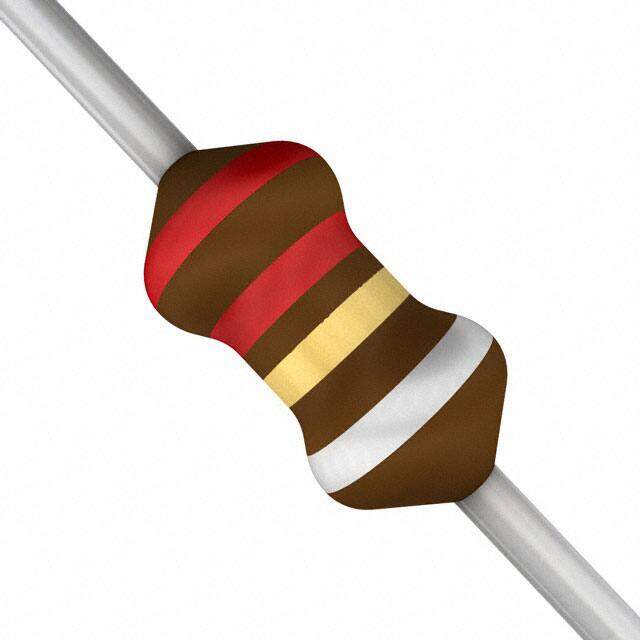

B82141A1122K000
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RF Choke Bobbin Core 1.2uH 10% 1MHz 40Q-Factor Ferrite 700mA 200mOhm DCR AXL T/R
PDF
/
Inventory: 7588
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Inductance Frequency - Test 7.96MHz
Q @ Freq 45 @ 7.96MHz
Frequency - Self Resonant 130MHz
DC Resistance (DCR) 200mOhm Max
Inductance 2.2μH
Shielding Unshielded
Current Rating (Amps) 700mA
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.118Diax0.268L 3.00mmx6.80mm
Series SBC
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Material - Core Ferrite
Package / Case Axial
Mounting Type Through Hole
Supply Chain
Factory Lead Time 8 Weeks
