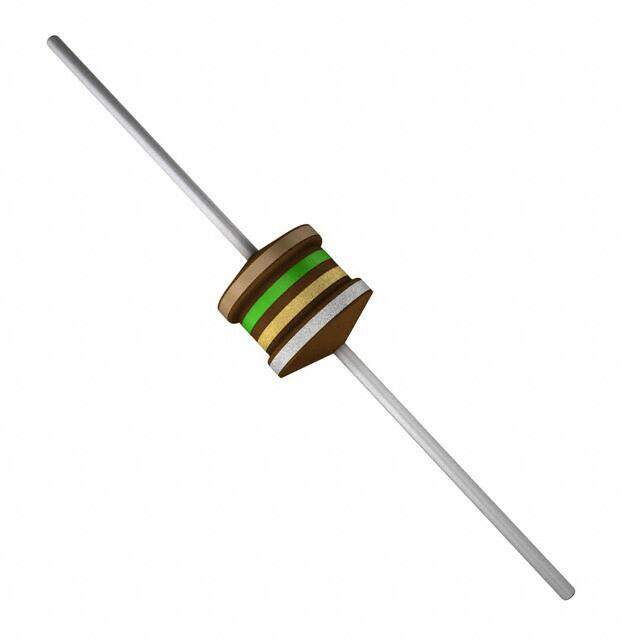

B78108T1152K000
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RF Choke Wirewound 1.5uH 10% 100KHz 40Q-Factor Ferrite 570mA 300mOhm DCR AXL T/R
PDF
/
Inventory: 5520
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case Axial
Supplier Device Package Axial
Material - Core Ferrite
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2016
Series MCC
Size / Dimension 0.130Diax0.276L 3.30mmx7.00mm
Tolerance ±10%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 570mA
Shielding Unshielded
Inductance 1.5μH
DC Resistance (DCR) 300mOhm Max
Frequency - Self Resonant 150MHz
Q @ Freq 40 @ 7.96MHz
Inductance Frequency - Test 7.96MHz
Compliance
RoHS Status ROHS3 Compliant
