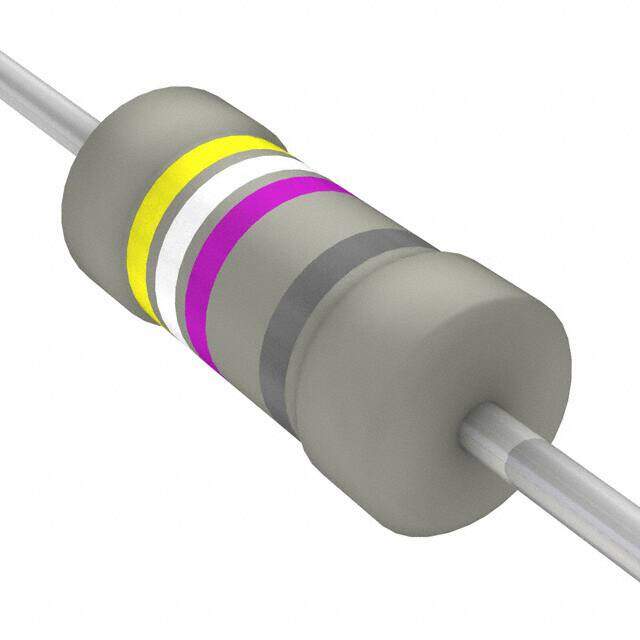

B78108S1103K009
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RF Choke Drum Core 10uH 10% 1MHz 70Q-Factor Ferrite 680mA 490mOhm DCR AXL Automotive Ammo Pack
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.2816
≥1 USD $0.2816
≥10 USD $0.22704
≥100 USD $0.209792
≥500 USD $0.192368
≥1000 USD $0.169576
≥3000 USD $0.164349
Inventory: 8521
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 26 Weeks
Physical
Mounting Type Through Hole
Package / Case Axial
Supplier Device Package Axial
Material - Core Ferrite
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Box (TB)
Series BC
Size / Dimension 0.157Diax0.362L 4.00mmx9.20mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 680mA
Shielding Unshielded
Inductance 10μH
DC Resistance (DCR) 490mOhm Max
Frequency - Self Resonant 35MHz
Q @ Freq 70 @ 2.52MHz
Inductance Frequency - Test 2.52MHz
Compliance
RoHS Status ROHS3 Compliant
